Solver Setup

This setup dialogue provides for adjustment of basic parameters controlling the calculation.

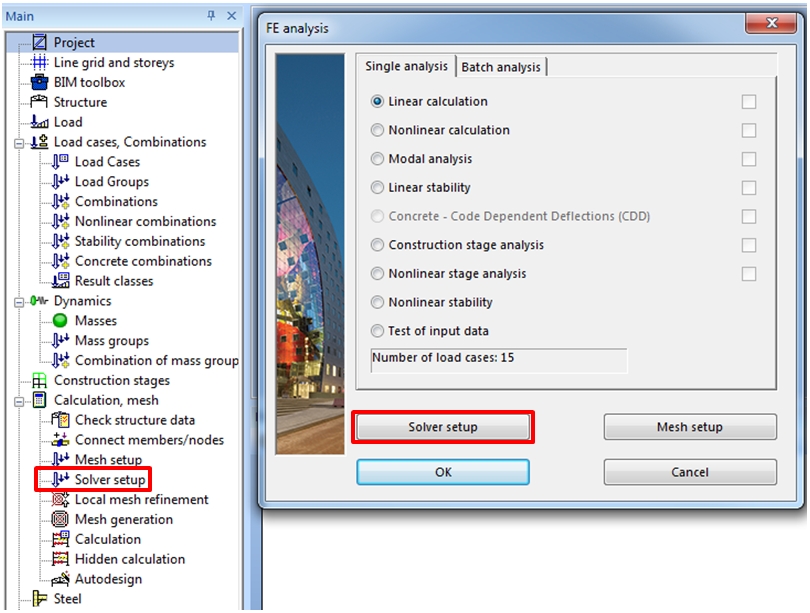

Solver setup is possible to open in two ways. Either in standard project tree in group "Calculation, mesh", or in the dialog "FE analysis" just before the calculation is executed..

Parameters in Solver setup are divided into several groups according analysis type (Nonlinearity, Dynamics...), or as parameters for special functionality (Soil, Mass...).

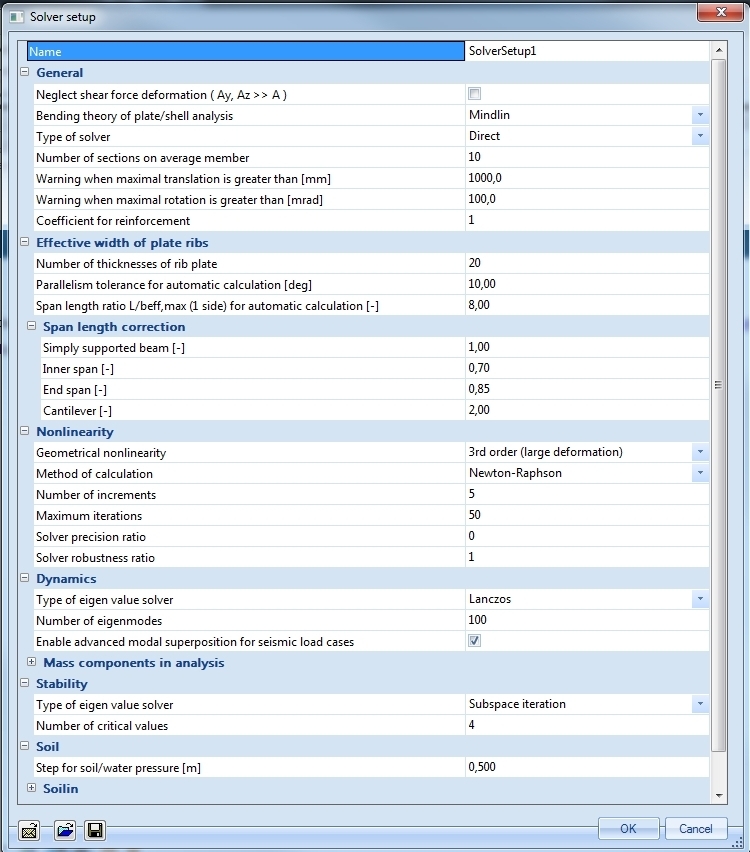

Solver setup groups of parameters

- General

This group of parameters is available for all type of calculations in the project.

There is only limitation in "type of structure" in "project data" dialog where there is no settings for slabs in for example project type "frame".

Parameters for this group

- Neglect shear force deformation

- Bending theory of plate/shell analysis

- Type of solver

- Number of sections on average member

- Warning when maximal translation is greater than

- Warning when maximal rotation is greater than

More information about these parameters is here : " Obecné parametry výpočtu"

- Effective width of plate ribs

This group of parameters is available for all type of calculations in the project.

There is only limitation in "type of structure" in "project data" dialog where there is no settings for slabs in for example project type "frame".

Parameters for this group

- Number of thickness of rib plate

- Parallelism tolerance for automatic calculation [deg]

- Span length ratio L/b_eff,max (1 side) for automatic calculation [-]

- Span length correction

Parameters in subgroup "Span length correction"

- Simply supported beam

- Inner span

- End span

- Cantilever

More information about these parameters is here : "Automatic Calculation of the Effective Width of Plate Ribs"

- Nonlinearity

This group of parameters is available only for nonlinear calculation, in the project with some nonlinear functionality and nonlinear combination.

Parameters for this group

- Geometrical nonlinearity

- Method of calculation

- Number of increments

- Maximum iterations

- Solver precision ratio

- Solver robustness ratio

- Plastic hinge code

- Allow compression in membrane members

More information about these parameters is here : " Statický nelineární výpočet"

- Dynamics

This group of parameters is available only for dynamic calculation, in the project with some dynamic LC and dynamic load.

Parameters for this group

- Type of eigen value solver

- Number of eigenmodes

- Use IRS (Improved Reduced System) method

- Produce wall eigenmode results (needed for ECTools)

- Enable advanced modal superposition for seismic load cases

- Method for time history analysis

- Mass components in analysis

Parameters in subgroup "Mass components in analysis"

- Translation along global X axis

- Translation along global Y axis

- Translation along global Z axis

- Rotation around local X axis of 1D members (torsion)

More information about these parameters is here : " Dynamický výpočet vlastních vibrací"

- Stability

This group of parameters is available only for stability calculation, in the project with stability functionality and Stability combination.

Parameters for this group

- Type of eigen value solver

- Number of critical values

- Soil

This group of parameters is available only if functionality "Subsoil" is available in the project.

Parameters for this group

- Soil combination

- C_1x

- C_1y

- C_1z

- C_2x

- C_2y

- Thickness of loose layer at contact level [m]

More information about these parameters is here : "Parametry požadované Soilinem"
