Numerical output

Numerical output

Results are displayed in a numerical as well as a graphical way, including dynamic images of interaction diagrams and stress / strain distributions.

Level of output detail

The level of output detail can be chosen in the Properties menu (Output). Generally, there are three levels of output

• Brief output - lists the unity check values of the selected members, or the required area of reinforcement. It is a simple table for all checks with the unity checks, default Engineering Report table.
• Standard - more detailed output coming from SCIA Design Forms
• Detailed - first gives an overview of the input data, then followed by a detailed calculation - very detailed output coming from SCIA Design Forms. It also includes dynamic images displaying:
  • Drawing of cross-section including reinforcement layout
  • Stress and strain distributions in different limit states
  • 2D prints of 3D interaction diagrams

Example of Brief output

Example of Standard output

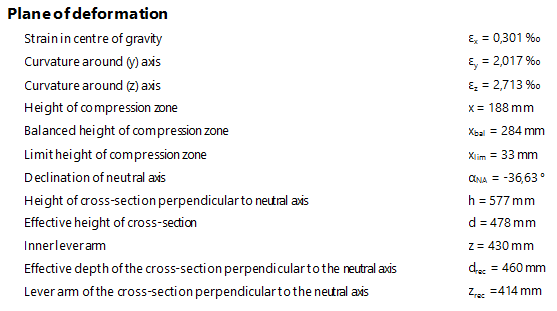

Example of Detailed output
