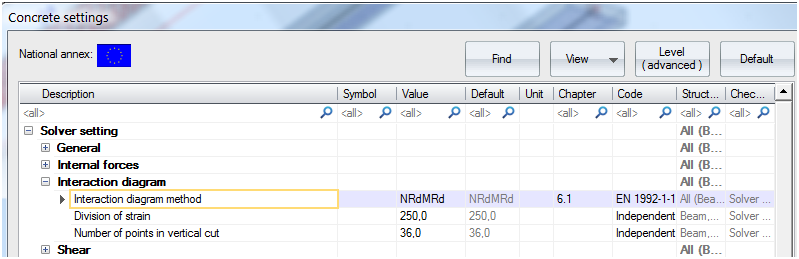

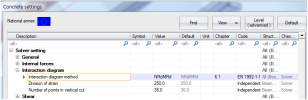

There are several parameters which affect generation of the horizontal and vertical cuts of interaction diagrams. These values are stored in Concrete settings (structure). The parameters for interaction diagram are the following:
Interaction diagram method - this option enable to select appropriate interaction diagram method. The following approaches can be applied:
Default value is NRdMRd
Division of strain - this option explain precision of calculation of diagram point during generation of vertical cuts. The value means how many times the strain plane is readjusted from the position of section under full compression to the position of section under full tension.The value influences the accuracy and the speed of calculation
Default value = 250. with limits <0;10000>.
Number of points in vertical cuts - number of direction (number of "branches") in which interaction diagram is calculated during generation of interaction diagram.
Default value = 36. with limits <0;10000>.
