The library of Named items is possible to view in Library>Named item.
The user has possibility to defined following named items in this library
Fibre
for evaluation of results of allowable concrete stresses in predefined named fibres only
for evaluation of results of allowable principal stresses in predefined named part of cross-section if phased CSS exists
Cut
for evaluation of results of allowable principal stresses in predefined named cuts of cross-section
Joint
for evaluation of results of shear stress in construction joint in predefined named joint if phased CSS exists
When user defined named items in library, then is necessary to linked named items to appropriate fibres, cuts, part of CSS and joints in selected CSS. The fibres and part of CSS are possible to define in selected CSS by button Edit named items.

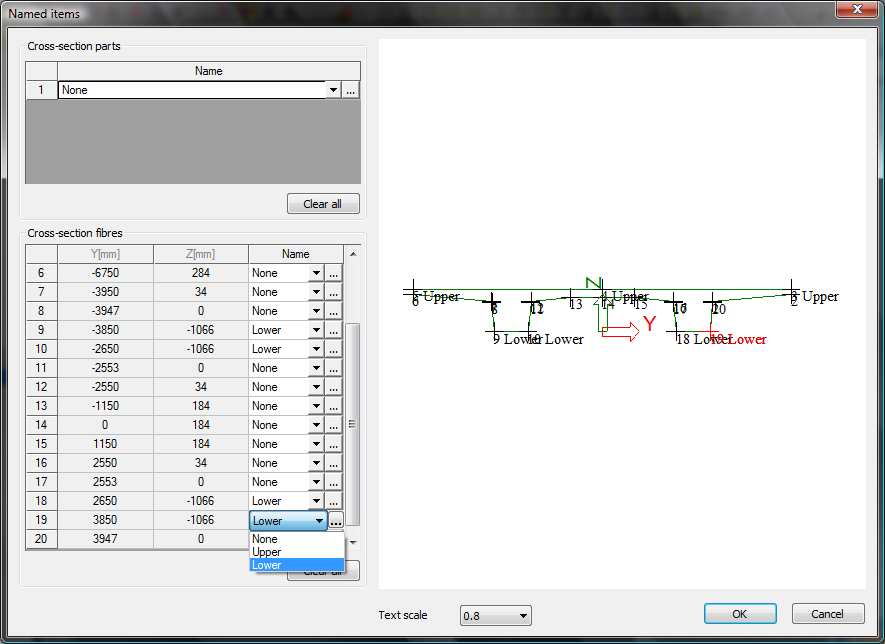

To the upper fibres with number 4, 5, 6 will be assigned named fibre Upper from named fibre library.
To the lower fibres with number 9 10, 18, 19 will be assigned named fibre Lower from named fibre library.
The named part of CSS could be defined in case of phased CSS in upper left part of dialog.
The named cuts are possible to add to the cut in Editor of general CSS.
The definition of new cut is possible by button Add cut in editor of general CSS.
There are two possibilities how to defined a cut
Point
cut is defined in selected point
Fibre + offset
cut is defined in offset from selected fibre
There is also possibility to set only cut in direction Y or Z.
The vertical cut in the left beam of CSS was defined.
The definition of new cut is possible by button Edit cuts for database CSS.
The property of Edit cuts dialog for database CSS is following.
The named joint could be defined in case of phased CSS using button Edit named joint in General CSS dialog.
The CSS is solid, that’s why no joints are displayed in Joint dialog.
The following properties will be displayed in case of phased CSS.
