The following weld symbols are used ( see Ref. [8] and Ref.[9]) :
|
Number |
Description |
|---|---|
|
1 |
fillet weld |
|
2 |
double fillet weld |
|
3 |
bevel (HV) weld |
|
4 |
square weld |
|
5 |
plug weld |
|
6 |
weld length at haunch |
Remark : the weld symbol (6) is not defined in the codes. This symbol is used to represent the weld length which is calculated according to chapter "Haunch with flange". On the graphical representation, the symbol (6) or the symbol (3) can be used for representing the weld size at the haunches. This can be set in the basic data.

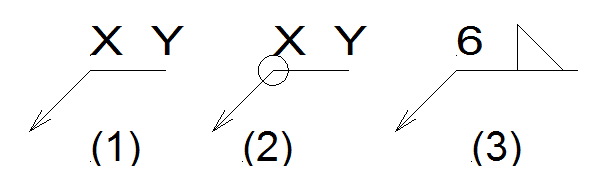

The location of the weld is defined by the above welding symbol. The X stands for the weld size, and Y stands for the weld symbol. The circle symbol in (2) is the weld-all-around symbol.
The example given in (3) means : fillet weld with 6 mm weld size.
