Calculation of critical Euler force

Definition

A VARH element is defined as follows :

The member has the properties of a symmetric I section (Formcode=1), where only the height is linear variable along the member. The system length for buckling around the local yy-axis (strong axis), is equal to member length.

For this non-prismatic section, the critical Euler force is given in the next section.

Calculation of critical Euler force

For a VARH element we can define:

ky

buckling coefficient around the yy-axis

Ly

system length around the yy-axis

Iy, max

maximum moment of inertia around the y-axis

Iy, min minimum moment of inertia around the y-axis

Iy,eq

equivalent moment of inertia around the y-axis

E

modulus of Young

Ncr,y

critical Euler force around the y-axis

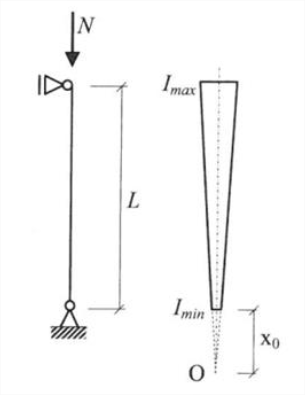

Hirt and Crisinel (Ref[10],pp. 291) present expressions for the elastic critical load of axially loaded non-prismatic members of double symmetric cross-sections (i.e. I-sections formcode 1). Flexural buckling about the strong axis of the cross-section occurs for:

where:

And C is a coefficient that depends on the parameter r, defined as the ratio between the minimum and the maximum moments of inertia.

For a tapered member:
