Formcodes for Pair sections

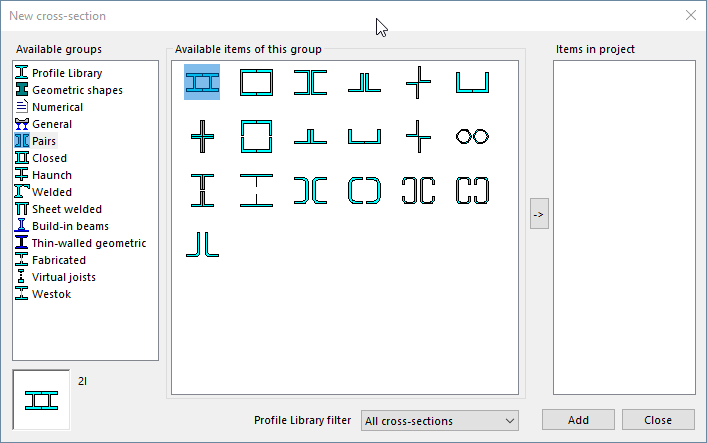

Within SCIA Engineer the different Pair sections are not part of the Profile Library but constructed from base sections (I-sections, U-sections, L-sections etc).

To provide an easy way of identifying pair sections when using the Open Checks: Link with SCIA Design Forms technology, each of these sections is exported using a unique formcode.

In addition to the respective parameters of the Pair section (like distance between the parts), also the parameters of the base section are exported.

The following table provides an overview of the different Pair section formcodes, their parameters and links to the respective base sections:

Pair	Formcode	Illustration	Parameters	Base section

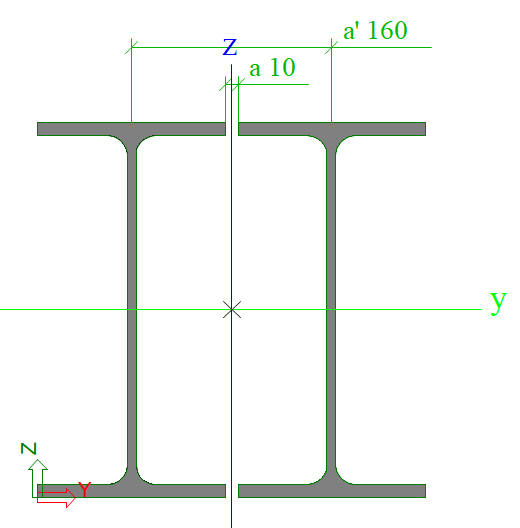

2I	2200		a Inner horizontal distance between sections a' Center horizontal distance between sections	Formcode 1 I Section

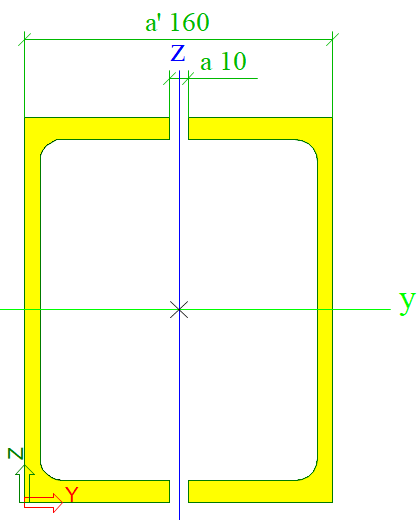

2Uc	2201		a Inner horizontal distance between sections a' Outer horizontal distance between sections	Formcode 5 Channel Section

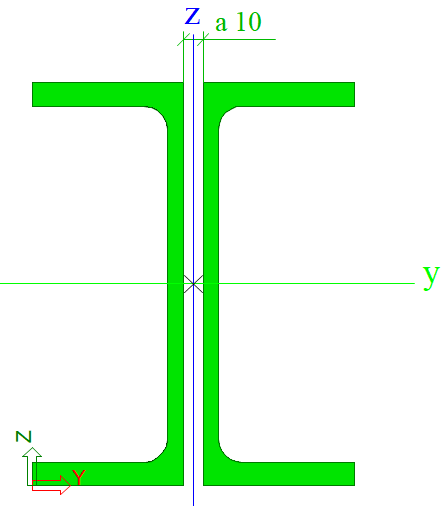

2Uo	2202		a Inner horizontal distance between sections	Formcode 5 Channel Section

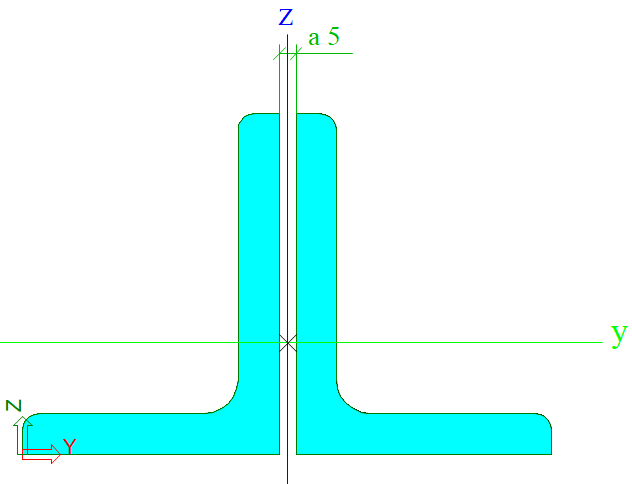

2LT	2203		a Inner horizontal distance between sections	Formcode 4 L Section
2LX	2204		a Inner horizontal distance between sections	Formcode 4 L Section

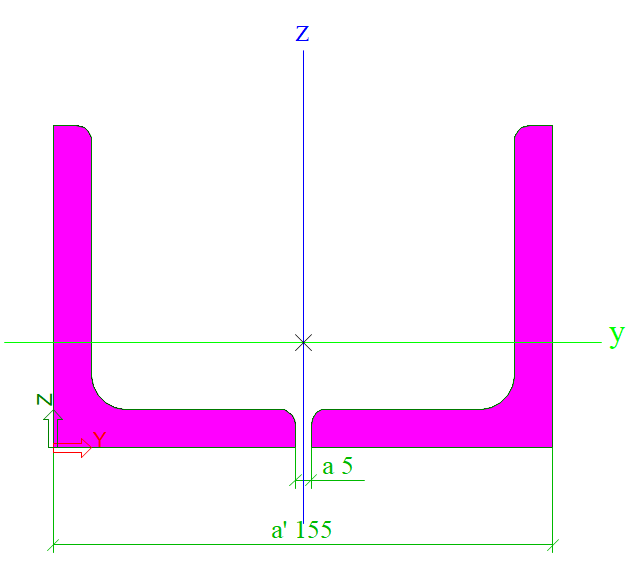

2LU	2205		a Inner horizontal distance between sections a' Outer horizontal distance between sections	Formcode 4 L Section

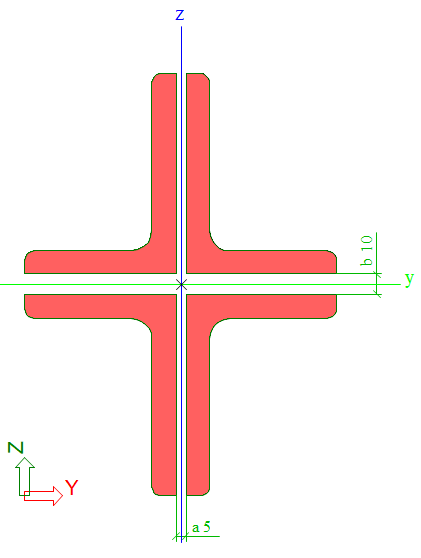

4LX	2206		a Inner horizontal distance between sections b Inner vertical distance between sections	Formcode 4 L Section

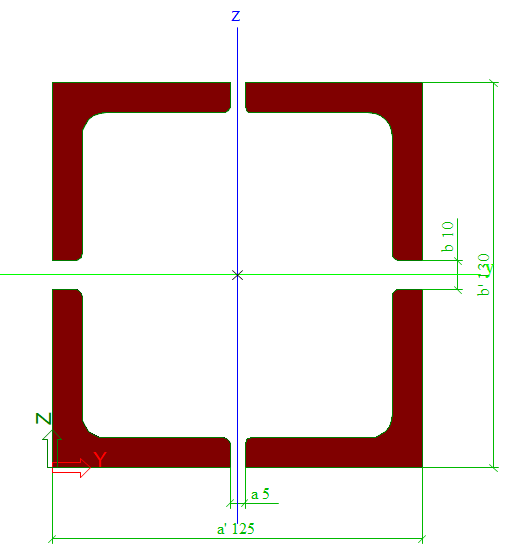

4LU	2207		a Inner horizontal distance between sections a' Outer horizontal distance between sections b Inner vertical distance between sections b' Outer vertical distance between sections	Formcode 4 L Section

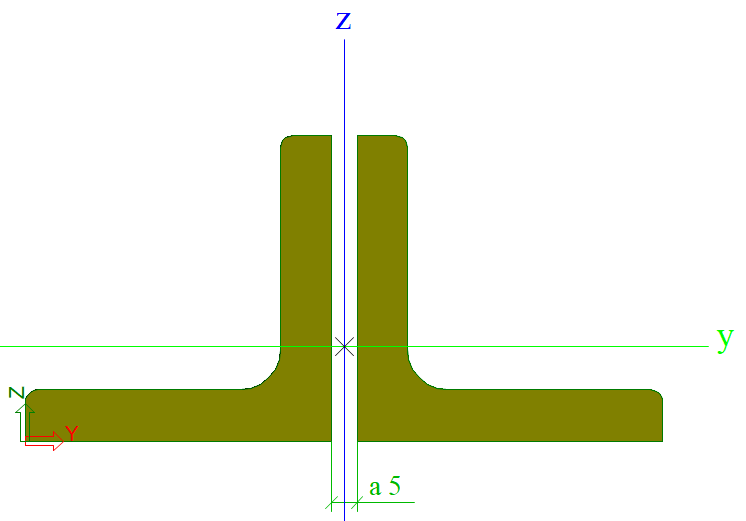

2LT_n	2208		a Inner horizontal distance between sections	Formcode 4 L Section

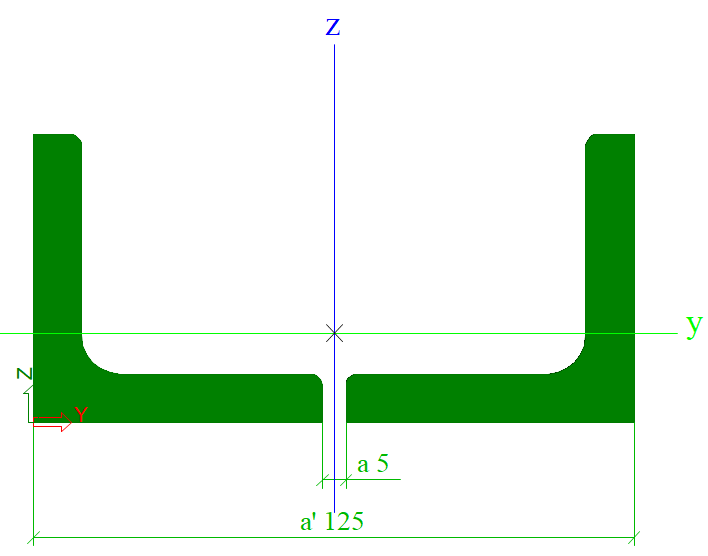

2LU_n	2209		a Inner horizontal distance between sections a' Outer horizontal distance between sections	Formcode 4 L Section

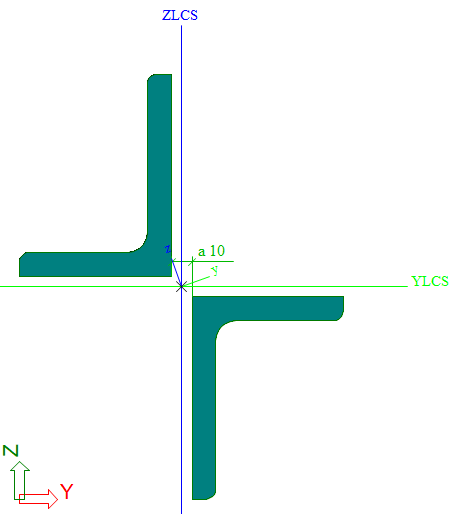

2LX_r	2210		a Inner horizontal distance between sections	Formcode 4 L Section
2xTube	2211		a Center horizontal distance between sections	Formcode 3 Circular Hollow
4xLc	2212		a Outer vertical distance between sections a' Inner vertical distance between sections b Outer horizontal distance between sections b' Inner horizontal distance between sections	Formcode 4 L Section
I_var	2213		H Section height a Inner vertical distance between sections	Formcode 1 I Section

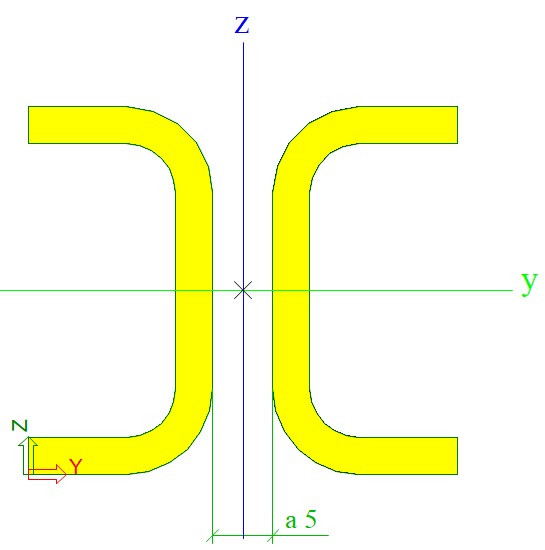

2CFUo	2082		a Inner horizontal distance between sections	Formcode 112 Cold Formed Channel

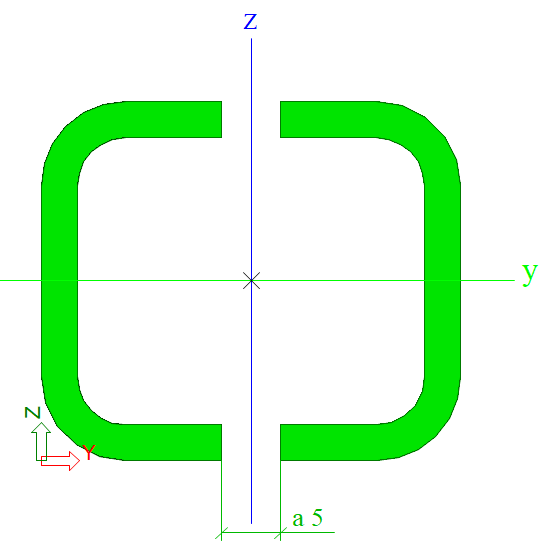

2CFUc	2083		a Inner horizontal distance between sections	Formcode 112 Cold Formed Channel

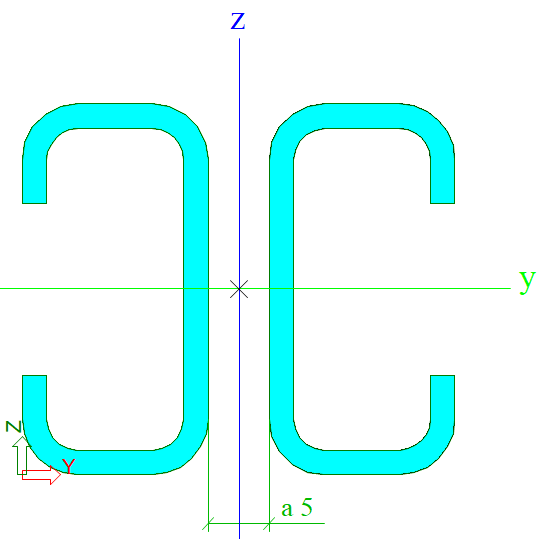

2CFCo	2084		a Inner horizontal distance between sections	Formcode 114 Cold Formed C

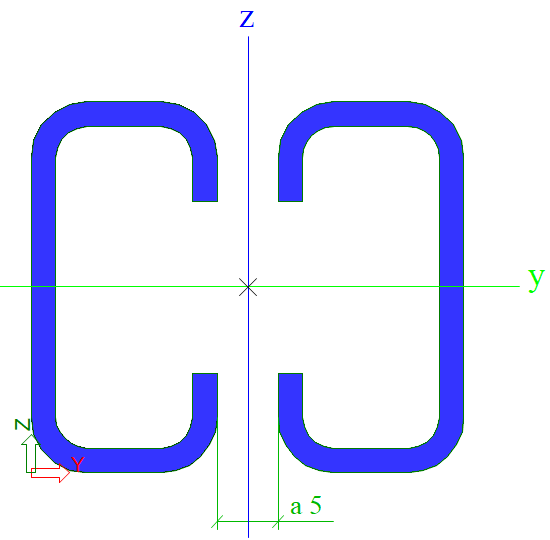

2CFCc	2085		a Inner horizontal distance between sections	Formcode 114 Cold Formed C

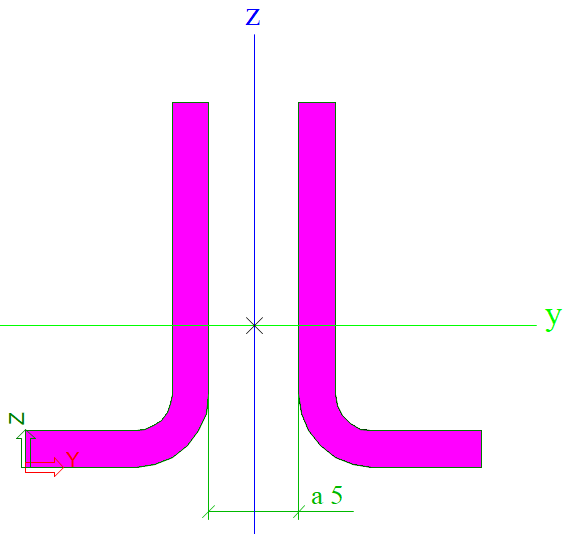

2CFLT	2086		a Inner horizontal distance between sections	Formcode 111 Cold Formed Angle
