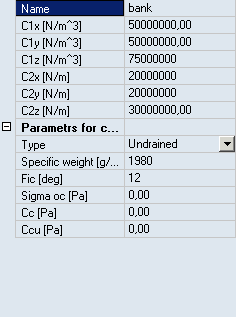

The definition of subsoil parameters can be done in the editing dialogue for subsoil. The editing dialogue is accessible via the Subsoils manager.
|
Constants C1 and C2 for directions X, Y, Z |
C parameters representing the subsoil properties. (see also Subsoil parameters for subsoil under a beam). |
|
Parameters for check |
Here the parameters necessary for check of the subsoil to a technical standards are defined. |
These data are used only for the stability check of a foundation block.
|
Density |
Soil density |
|
Fic |
The value of the angle of the shearing resistance in terms of effective stress. |
|
Cc |
The value of the cohesion intercept in terms of effective stress. |
|
Ccu |
The value of the undrained shear strength. |
|
Sigma oc |
The admissible ground stress (optional). |
|
Type |
The soil can be Undrained or Drained. |
