Changing the parameters of dimension line

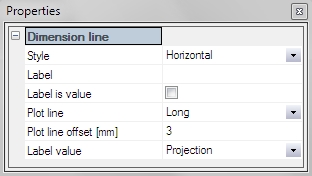

Parameters of dimension line

Style	The dimension line may be horizontal, vertical, or general.
Label	Text which can be used as a dimension label

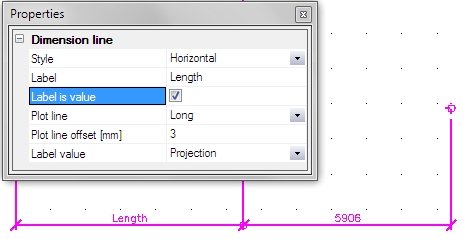

Label is value	The text in the Label is used as dimension label
Plot line	Plot line can be long, i.e. leading from the dimension line up to the dimensioned object, or short.
Plot line offset	This value specifies the length of the plot line.
Label value	The option specifies if the distance is calculated from the picture of from the 3D model.

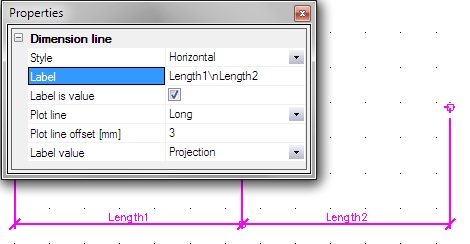

When the two text labels should be used, write the parameter \n to the Label.

The procedure for the change of dimension line parameters

Select the dimension lines that should be edited.
If the Properties dialogue is not displayed, click button [Show/hide properties] ( $image\Gro_Pict_gal_Show_properties.gif$ ) on toolbar Miscellaneous.
Make the necessary changes in the dialogue.
The changes are immediately taken into account.
If required, close the Properties dialogue.
