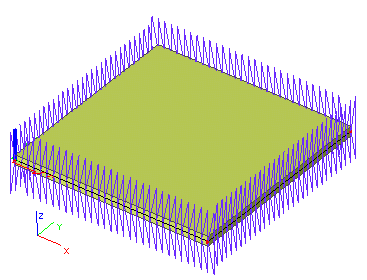

Thermal load on slab

Thermal load may be either constant or linear.

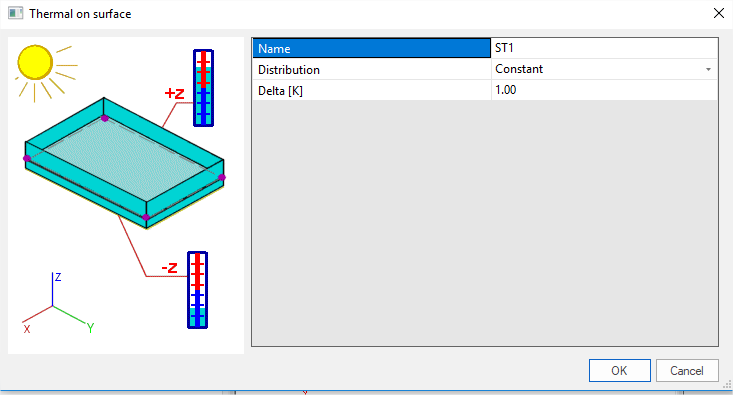

Constant

The load is defined by means of a single value. The value specifies the warming to which the slab is subject.

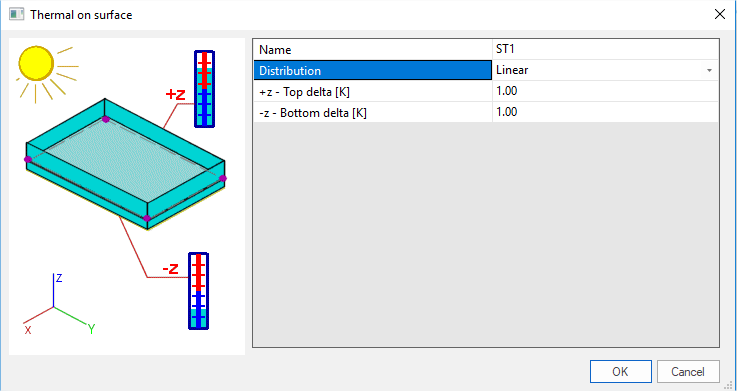

Linear

The load is defined by means of a set of two values. The individual values specify the warming (change of temperature against some reference value) at individual surfaces (top, bottom) of the slab.
