There are a few ways to see and scrutinise the parameters of a particular material.
|
The Materials manager contains a vertically oriented window that displays the parameters of currently selected material in a property table. |
|
|
Each dialogue for editing of a material contains a property table with all the available parameters of the edited material. |
|
|
This is the most sophisticated kind of display for parameters of a material. |
Property table in the Materials manager
The property table in the Materials manager provides for quick overview of parameters of individual materials. It is possible to edit some of the parameters.

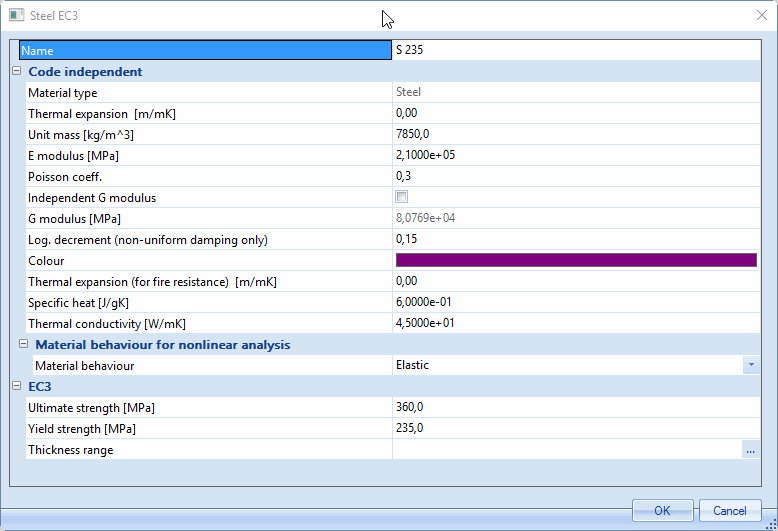

Property table in the dialogue for editing of a particular material type
The property table in this dialogue provides for both lucid overview of the material parameters and their straightforward modification.
Document-style view in the preview window
The material parameters can be displayed in tabular form in the Preview window. The preview window displays a table with all the material parameters sorted in it.
The table is in fact a standard SCIA Engineer document table and consequently its format can be adjusted to meet any specific requirements. The adjustment can be done the same way as with any other document table.
The picture below shows a sample preview of material properties for three selected materials.
