block - Beam
Catalogue block Beam represents
an I-beam of a cross-section varying along the span. In cross-section
the beam is shaped like letter I with haunches in the inner corners between
the flanges and the wall. In longitudinal section, the beam is symmetrical
and resembles of letter A. However, the longitudinal shape may be affected
by the concrete values of individual beam dimensions.
Beam parameters
|
Name
|
The name is used for unique and straightforward
identification of the catalogue block.
|
|
Dimensions
|

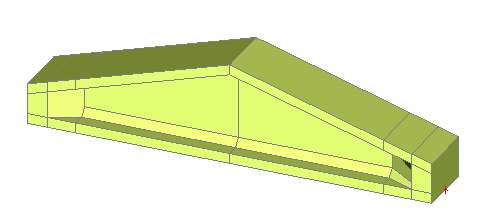

The dimensions define the size and consequently
also the shape of the beam. Meaning of individual dimension parameters
can be clearly seen on the accompanying picture.
|
|
Cross-section
|
Catalogue block Beam
always requires the definition of its cross-section before the
specification of dimensions.
|
