Name |
Defines the name of the opening. |
|
2D member |
Informs about the master plate. |
|
Panel |
If ON, the opening represents a panel that can be loaded and whose load will be transformed into the edges of the opening. For more read chapter Geometry > Slabs > Defining a new load panel . |
|
Cut 1D member |
If ON, the opening cuts and removes the ribs if the opening is being inserted into a ribbed slab. |
|
Cut out opening in 1D member |
If ON and if the opening in the slab cuts also the ribs of the ribbed plate, then new openings are created in the ribs (beams). |
An opening may be input in two ways: (i) as a normal opening that lies fully inside the main slab, (ii) as an opening that overlaps the main slab – such an opening then serves as a "cut" to the main slab.
|

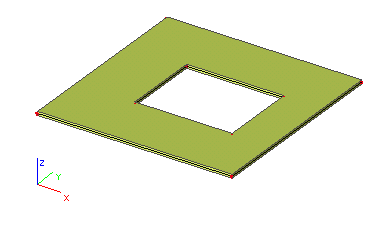

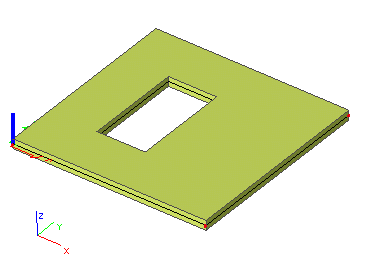

normal opening |
|
|

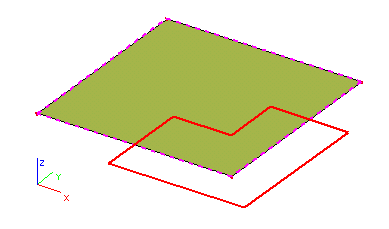

opening as a cut – definition phase |
|
|

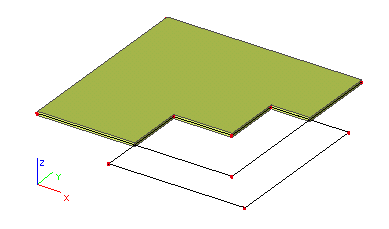

opening as a cut – final shape |
|
