Using grid step on tracking ray and line

The settings for dot grid can be used on tracking rays and lines.

The snap to the dot grid must be switched ON.

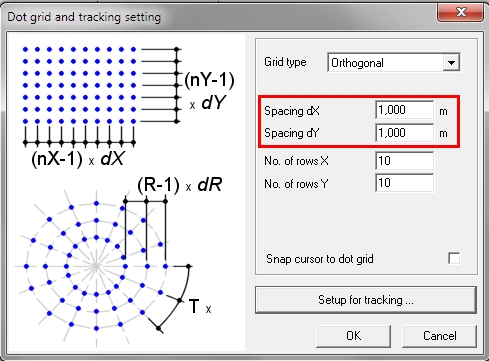

The step is taken from the Dot grid and tracking setting. The cursor is snapped to steps on the tracking ray and tracking line. The start tracking point is always taken as zero and its position has no influence on the steps.
