In the numerical output are new values, which are used in calculation β factor according to generals methods. The following new values can be presented in numerical output :
The orientation of axis’s in LCS for punching is always transformed to the first quadrant of GCS of the project and the LCS for punching can be presented in single check, see picture below

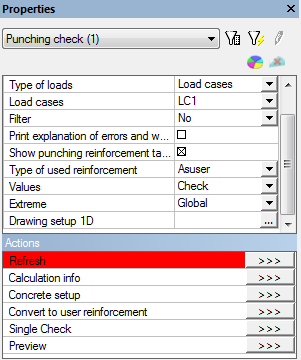

The numerical output can be presented after clicking on action button Preview in service Punching check (tree Concrete Advanced > Punching ) or after adding the item Punching check to the document
|
Numerical output in service Punching check |
Numerical output in document |
|---|---|
|
|
|
There are presented following tables in member check
The β factor and other values, which are used for calculation β factor can be presented in table Check punching shear resistance and design shear reinforcement.
Existing table can be edit via icon Table composer
or via double clicking on the header of the table. The new table can be created via icon Table manager
The dialog for detailed check of one node (single check) will be opened after clicking on action button Single check in service Punching check (tree Concrete Advanced > Punching ). The numerical output can be presented in tab-sheet Design of reinforcement or in tab-sheet Document setup
The numerical output in single check can be presented directly in the dialog (item Preview) or can be set to the main document (item Document)
There is a special table in Results in critical section, where are presented ( depending on the selected method of calculation β factor ) detailed values, which are used for calculation of β factor
