Design versus check

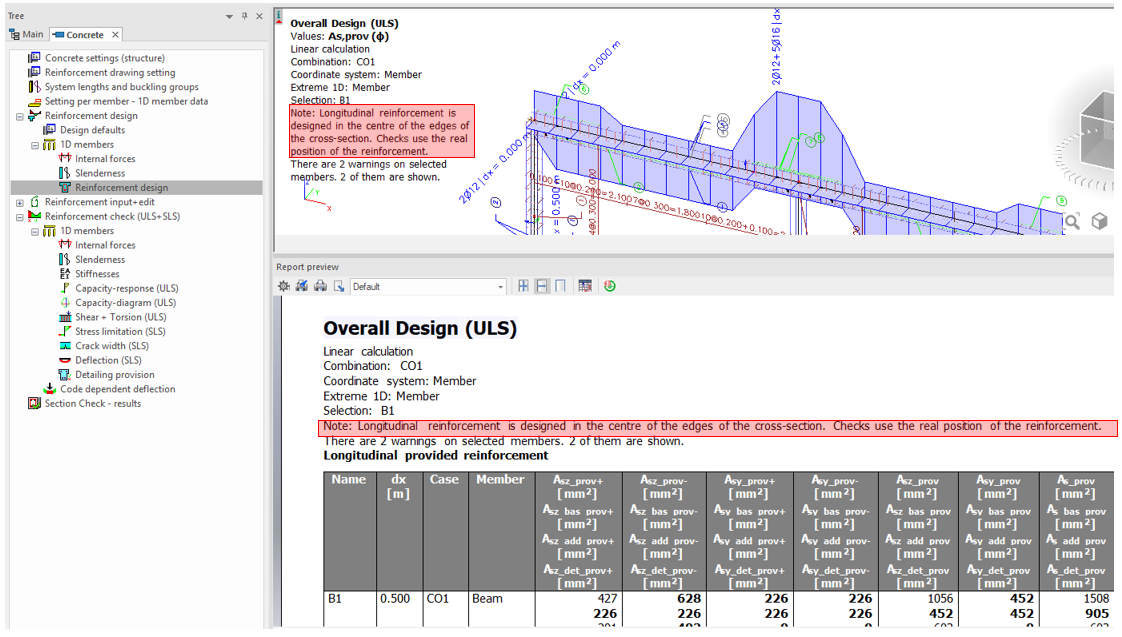

There is appeared new note in header of design reinforcement, see picture below.
This note informs user, that in some case there can be some differences between design and check the unity check for converted reinforcement can be bigger than 1,0). These differences are mainly occurred for biaxial design and there are caused by:

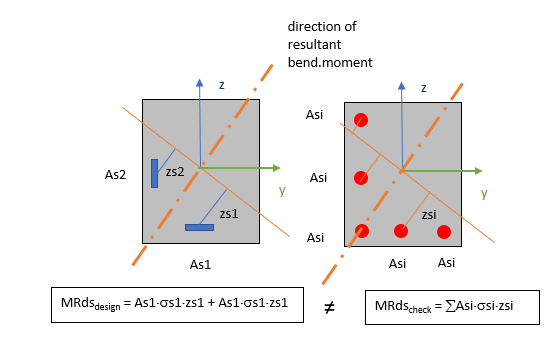

- different position of reinforcement in design and in the checks. Longitudinal reinforcement is design in the centre of the edges of the cross-section, but for the check real position is taken into account (reinforcement is distributed along the edge). The position of reinforcement affects the check mainly for biaxial design.
- different precondition which are used for design (simplified procedure for generation interaction diagram is used for design)
