Basic mode for member data adjustment on 2D elements

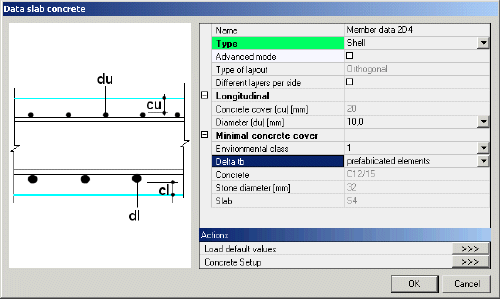

Basic mode of the Member data adjustment dialogue offers only basic parameters.

To select the basic mode, clear check box Advanced mode at the top part of the dialogue.

The basic mode allows the user to set only the diameter of the reinforcement and exposure conditions.

General parameters

Name	Defines the name of member data.
Type	Specifies the member type. Available types: Wall, Plate, Shell.
Advanced mode	In Basic mode of the project, this option is OFF.
Layers in centre	If the Type (above) is set to either Wall or Shell, it is possible to define just one layer of reinforcement in the centre of the member.
Type of layout	In Basic mode, only orthogonal layout of reinforcement is supported.
Different layers per side	If ON, different steel class, reinforcement geometry and covers may be adjusted for the upper and lower surface.
Slab	The name of the member is displayed.
Main reinforcement steel	The steel material of the longitudinal reinforcement can be changed or reselected here
Shear reinforcement steel	The steel material of the shear reinforcement can be changed or reselected here
First reinforcement direction angle	The direction angle of the outer reinforcement direction is et here Default value: 0°

Concrete cover (cu)	Informs about the cover size.
Diameter (du)	Specifies the diameter of used reinforcement.

Environmental class	Defines the environmental class.
Delta tb	Defines the condition that may affect the value of minimal cover (not applicable to all standards).
Concrete	Informs about the concrete grade used.
Stone diameter	Informs about the size of stones in concrete.
Slab	Shows the name of the member.

Load default values	Loads the default settings made in the setup dialogue.
Concrete setup	Enables the user to adjust parameters in the setup dialogue.
