Steel checks

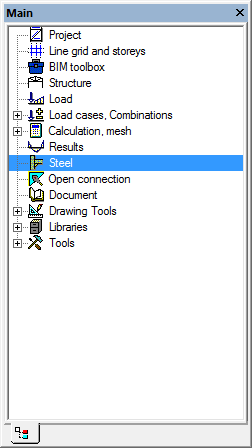

Double-click on the Steel service in the Main window.

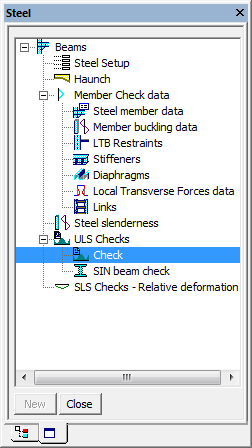

Click on Check from the subgroup ULS Checks of the group Beams in the Steel service.

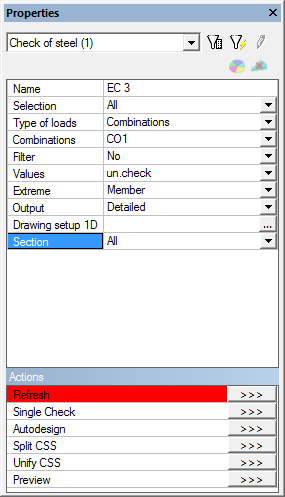

Define following settings in the Properties window.
Selection = all
Type of loads = Combinations
Filter = No
Values = un. check
Extreme = Member
Output = Detailed
Section = All
Click Refresh in the Properties window.

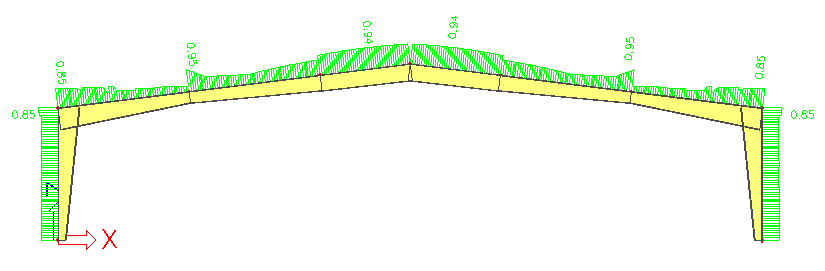

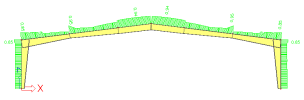

Check displayed steel checks values.
