Autodimensions

Autodimensions are automatically generated dimension lines that are defined by drawing rules.

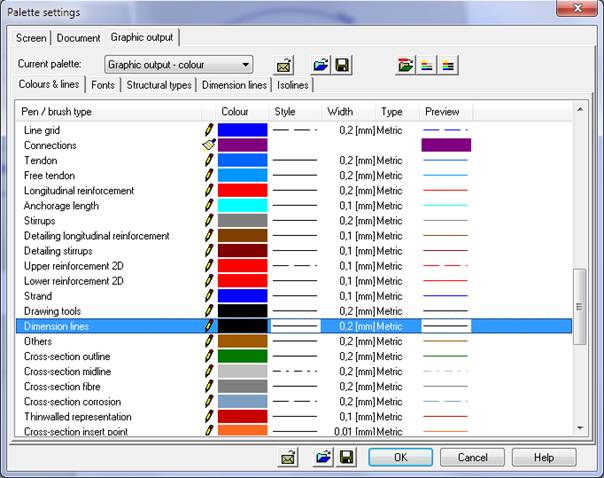

The colour for autodimensions is controlled by Palette settings/Graphic output/Dimension lines (the same definition applies to manual and autolabels).

Linegrid autodimension

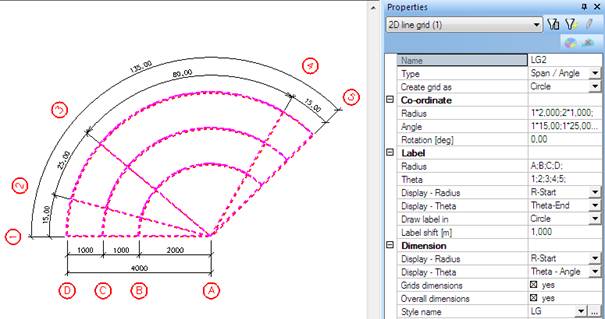

The rule for generation of Autodimenions is the “2D linegrid” drawing rule. This rule generates linegrid lines, linegrid dimensions and linegrid labels according to the definition in the properties.

The properties of autodimension are the same as for manual dimensions. The Style name is set to none (no style is assigned) after refreshing of Drawing view (however, if autodimensions are frozen the style – if it has been assigned - is preserved).

Find more about drawing rules in chapter Drawing manager and Concept.
