Import and export

The storey can be only once in the project. This is also the only limitation of the import and export tool.

• If the existing project contains storeys -> the newly imported project is imported without storeys.
• If the existing project doesn’t contain storeys -> the newly imported project is imported with storeys.

The inserting point for the imported storeys is placed correctly with the respect to the construction.

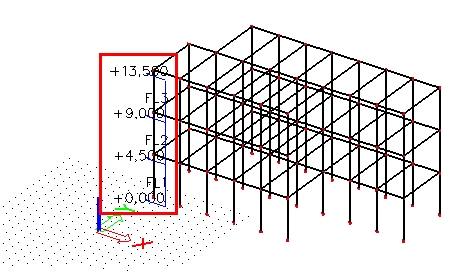

Project which will be imported:

• Storeys are placed next to the structure, GCS is under the second column.

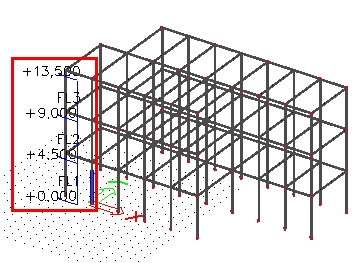

Project imported to an empty project:

• Storeys are placed again next to the structure, GCS is located farther, because the inserting point for import wasn’t set to 0,0,0.
