Concrete member data

1D member data

These settings overwrite the global settings for a specific member. Member data can easily be copy-pasted to similar members. There is differentiation based on type of member (beam, column, beam slab, rib). As in the case of setup, Member data has been also restyled. Local settings contains a contain about the same input parameters and calculation settings as the global settings in setup. Moreover, user can set his/her own value of limit deflection and limit width of crack, define more environmental classes than just one as in previous version.

Concrete Advanced member data Concrete member data

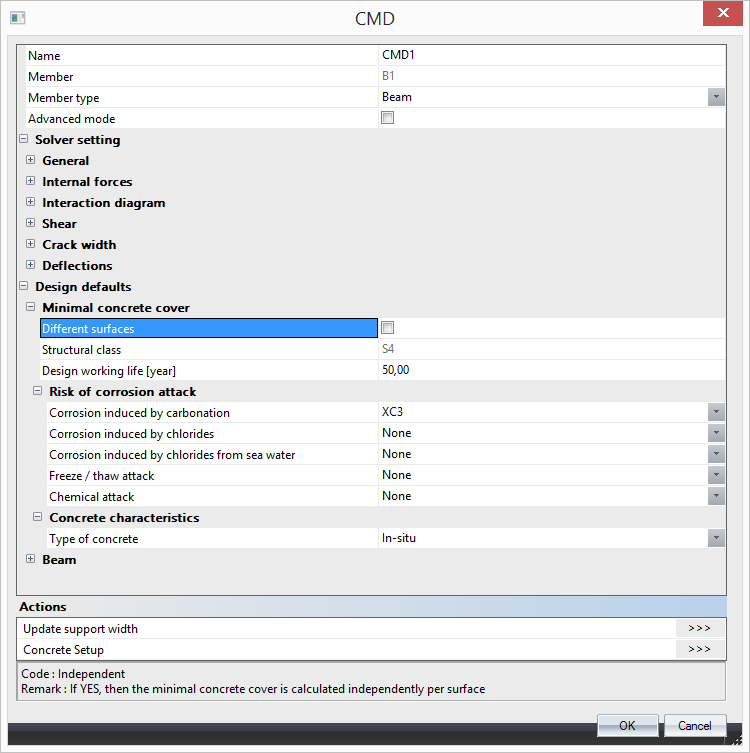

Properties of 1D Member data

1D Member data are arranged similarly as Concrete settings (structure). Generally, there are the following items.

Solver settings

General

Creep
Type input of creep coefficient
Description

Type of calculation creep coefficient:

- user value - creep coefficient inputted directly by the user

- auto - creep coefficient is calculated automatically by the program
Default Combo box ; Typeϕ = Auto / User input; default = Auto

Code

 Annex B.1
Level Standard

Member

 1D member (Beam / Column / Beam Slab / Rib)
Relative humidity
Description Relative humidity of ambient environment
Default Edit box; RH = 50 %

Code

 Annex B.1
Level Advanced

Figure

 1D member (Beam / Column / Beam Slab / Rib)
Age of concrete at loading
Description Age of concrete at loading of the member
Default Edit box; t0 = 28 days

Code

 Annex B.1
Level Advanced

Member

 1D member (Beam / Column / Beam Slab / Rib)
Age of concrete at the moment considered
Description Age of concrete at the moment considered. It means, time, which creep coefficient is calculated for.
Default Edit box; t = 1825 days

Code

 Annex B.1
Level Advanced

Member

 1D member (Beam / Column / Beam Slab / Rib)
SLS
Use effective modulus of concrete
Description Possibility to use effective E modulus of concrete. It means the long-term behaviour of concrete is covered in the analysis of the crack width, stress limitations and stiffness calculation.
Default Check box, default NO

Code

 7.1(2)
Level Advanced

Member

 1D member (Beam / Column / Beam Slab / Rib)

Internal forces

Isolated member
Description

The geometric imperfection is calculated as for isolated member, if this parameter is ON
Default Check box; default True

Code

 5.8.8.2
Level Advanced

Member

 Column
Determination of unfavourable direction
Description

Determination of the direction for calculation of second order effect and geometrical imperfection effect and geometrical imperfection according to conditions 5.38a a 5.38b

- Auto: automatic calculation of direction for taking into account second order effect and geometrical imperfection according to conditions 5.38a a 5.38b

- Uniaxial: second order effect and geometrical imperfection is taken into account only in one (more unfavourable direction)

- Biaxial: second order effect and geometrical imperfection is taken into always in both directions
Default Combo box Auto / uniaxial / biaxial; default Auto

Code

 5.8.9
Level Advanced

Member

 Column
Internal forces ULS
Use minimum value of eccentricity
Description

The minimum value of eccentricity is taken into account for calculation first order eccentricity, if this parameter is ON.
Default Check box default True

Code

 6.1.4
Level Advanced

Member

 Column
Use geometric imperfection
Description

The geometric imperfection is taken into account for calculation first order eccentricity, if this parameter is ON.
Default Check box, default True

Code

 5.2.5
Level Standard

Member

 Column
Use second order effect
Description

The second order effect is taken into account, if slenderness is greater than limit slenderness and this parameter is ON.
Default Check box, default True

Code

 5.8.8
Level Standard
Member

Column
Estimation ratio of longitudinal reinforcement for recalculation
Description

Estimation ratio of longitudinal reinforcement for calculation mechanical reinforcement ratio in design of reinforcement. Mechanical ratio is calculated for calculation limit slenderness (chapter 5.8.3.1(1) and second order effect - method based on nominal curvature (formula 5.36)
Default Edit box; default μs = 1 %

Code

 6.2.3
Level Advanced

Member

 Column
Take into account additional tensile force caused by shear force
Description

If the check box is ON , the additional tensile force caused by shear force is taken into account by using shift rules
Default Check box default True

Code

 9.2.1.3(2)
Level Standard

Member

 Beam / Beam Slab / Rib

Design As

Design method (beams)
Description

Method for design of longitudinal reinforcement for beams and beams slab
Default Combo box; Auto / Uniaxial around y / Uniaxial around z / Biaxial; Default Auto

Code

 -
Level Advanced

Member

 Beam / Beam Slab / Rib
Design method (columns)
Description

Method for design of longitudinal reinforcement for columns
Default Combo box; Auto / Uniaxial around y / Uniaxial around z / Biaxial; Default Auto

Code

 -
Level Advanced

Member

 Column

Interaction diagram

Interaction diagram method
Description

Possibility to set method for evaluation of results using interaction diagram:

- NRd - assuming MEd is constant

- MRd - assuming NEd is constant

- NRdMrd - - assuming eccentricity is constant

- Mrdy - assuming MEdz is constant

- Mrdz - - assuming MEdy is constant
Default Combo box NRd / MRd / NRdMrd / Mrdy / Mrdz, default NRdMRd

Code

 6.1
Level Standard

Member

 1D member (Beam / Column / Beam Slab / Rib)

Shear

Type calculation / input of angle of compression strut
Description

Type calculation of angle of between of compression strut and member axis for shear check

- Auto: automatic calculation of minimum angle based on condition

VEd≤ VRd.max

- User(angle) : the value is inputted by the user as angle

- User(cotangent) : the value is inputted by the user as cotangent of the value
Default Combo box, Auto / User (angle) / User (cotangent); default User (angle)

Code

 6.2.3
Level Standard

Member

 1D member (Beam / Column / Beam Slab / Rib)
Shear between web and flange
Type calculation / input of angle of compression strut
Description

Input type for angle between compression strut and member axis for longitudinal shear check

- User(angle): the value is inputted by the user as angle

- User(cotangent): the value is inputted by the user as cotangent of the value
Default Combo box, User (angle) / User (cotangent); default User (angle)

Code

 6.2.4(4)
Level Advanced

Member

 Beam / Beam Slab
Angle of compression strut
Description

Angle between compression strut and member axis for longitudinal shear check; editable only if type of calculation of compression strut angle is User (angle)

Default Edit box, ϕf = 40 °

Code

 6.2.4(4)
Level Advanced

Member

 Beam / Beam Slab / Rib
Cotangent angel of compression strut
Description

Cotangent of the angle between compression strut and member axis for longitudinal shear check; editable only if type of calculation of compression strut angle is User (cotangent)

Default Edit box, cot ϕf =1,2

Code

 6.2.4(4)
Level Advanced

Member

 Beam / Beam Slab / Rib

Torsion

Equivalent thin walled cross-section
Description

Type of equivalent thin-walled cross-section used for calculation of cross-section capacity in torsion
Default Combo box; Automatic / From stirrups from torsion / From effective CSS / From effective rectangular CSS; / User input of thin-walled closed cross-section; default Automatic

Code

 6.3.1(3)
Level Advanced

Member

 1D member (Beam / Column / Beam Slab / Rib)
Area of thin walled closed cross-section
Description

An area of thin walled closed cross-section enclosed by the centre-lines of the connecting walls, including inner hollow areas; visible only if Equivalent thin walled cross-section is set to User input of thin-walled closed cross-section
Default Edit box; default 0 mm2

Code

 6.3.1(3)
Level Advanced

Member

 1D member (Beam / Column / Beam Slab / Rib)
Outer circumference of the cross-section
Description

Outer circumference of the cross-section; visible only if Equivalent thin walled cross-section is set to User input of thin-walled closed cross-section
Default Edit box; default 0 mm2

Code

 6.3.1(3)
Level Advanced

Member

 1D member (Beam / Column / Beam Slab / Rib)
Effective wall thickness
Description

Thickness of equivalent thin-walled cross-section. It may be taken as A/u, but should not be taken as less than twice the distance between edge and centre of the longitudinal reinforcement; visible only if Equivalent thin walled cross-section is set to User input of thin-walled closed cross-section
Default Edit box; default 0 mm2

Code

 6.3.1(3)
Level Advanced

Member

 1D member (Beam / Column / Beam Slab)

Cracking forces

Type of strength for calculation of cracking forces
Description

Type of tensile strength of concrete used for calculation of cracking forces in SLS checks (stresses and deflections). It is possible to select between fctm (Table 3.1) and fctm,fl (Clause 3.1.8).
Default Combo box fctm / fctm,fl (default fctm)

Code

 7.1(2)
Level Advanced

Member

 1D member (Beam / Column / Beam Slab / Rib)
Value of strength for calculation of cracking forces
Description

Value of strength of concrete used for calculation of cracking forces in SLS checks (stresses and deflections). It is possible to select between

a) 0 MPa - first crack appears when tensile stress is reached in concrete cross-section

b) fcteff - first crack is appears when effective tensile strength is reached in cross-section
Default Combo box 0 MPa/ fctm,eff (default fct,eff)

Code

 7.1(2)
Level Advanced

Member

 1D member (Beam / Column / Beam Slab / Rib)

Crack width

Type of maximal crack width
Description

Possibility to automatically determined crack width according to exposure class, combination and type of structure or to set user defined value of crack width
Default Combo box; Auto / User; default Auto

Code

 7.3.1(5)
Level Standard

Member

 1D member (Beam / Column / Beam Slab / Rib)
User defined value of crack width
Description

User defined crack width
Default Edit box; winp = 0,3 mm

Code

 7.3.1(5)
Level Standard

Member

 1D member (Beam / Column / Beam Slab / Rib)

Deflections

Maximal total displacement L/x; x =
Description

Maximal total (nonlinear+creep) displacement allowed for 1D member expressed as span / depth ratio
Default Edit box; xtot = 250

Code

 7.4.1(4)
Level Standard

Member

 1D member (Beam / Column / Beam Slab / Rib)
Maximal additional displacement L/x; x =
Description

Maximal additional (total - immediate) displacement allowed for 1D member expressed as span / depth ratio
Default Edit box; xadd = 500

Code

 7.4.1(5)
Level Standard

Member

 1D member (Beam / Column / Beam Slab / Rib)

Design defaults

Minimal concrete cover

Different surfaces
Description

If YES, then the minimal concrete cover is calculated independently per surface and all items for concrete cover are split into lower and upper
Default Edit box , default = 50 years

Code

 -
Level Standard

Figure

 -
Member Beam / Beam Slab / Rib
Design working life
Description

Design working life is information used for determination of minimal concrete cover
Default Edit box , default = 50 years

Code

 4.4.1.2(5), table 4.3N
Level Standard

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)
Risk of corrosion attack
Corrosion induced by carbonation
Description

Exposure class caused by carbonation is used for determination of minimal concrete cover in Table 4.4N
Default Combo box; None / X0 /XC1 / XC2 / XC3 / XC4; default =XC3

Code

 4.4.1.2(5), table 4.3N
Level Standard

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)
Corrosion induced by chlorides
Description

Exposure class caused by chlorides is used for determination of minimal concrete cover in Table 4.4N
Default Combo box; None / XD1 / XD2 / XD3; default =None

Code

 4.4.1.2(5), table 4.3N
Level Standard

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)
Corrosion induced by chlorides from sea water
Description

Exposure class caused by chlorides from sea water is used for determination of minimal concrete cover in Table 4.4N
Default Combo box; None / XS1 / XS2 / XS3; default =None

Code

 4.4.1.2(5), table 4.3N
Level Standard

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)
Free / thaw attack
Description

Additional Exposure class caused by freezing or thawing
Default Combo box; None / XF1 / XF2 / XF3; default = None

Code

 4.4.1.2(12)
Level Standard

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)
Chemical attack
Description

Additional Exposure class caused by chemical attack
Default Combo box; None / XA1 / XA2 / XA3; default = None

Code

 4.4.1.2(12)
Level Standard

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)
Risk of abrasion attack
Description

Additional Exposure class caused by abrasion attack
Default Combo box; None / XM1 / XM2 / XM3; default = None

Code

 4.4.1.2(13)
Level Advanced

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)

Possibility of special control

Special geometric control
Description

To take into account additional deviation to nominal concrete cover caused by special geometric control
Default Check box; default = True

Code

 4.4.1.3(3)
Level Advanced

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)
Special quality control
Description

To take into account additional deviation to nominal concrete cover caused by special concrete quality control
Default Check box; default = True

Code

 4.4.1.2(5)
Level Advanced

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)
Risk of casting on atypical surface
Description

To take into account additional deviation to nominal concrete cover caused by casting on atypical surface
Default Combo box; Standard / Against prepared ground / Again soil / Uneven surface default = Standard

Code

 4.4.1.3(4)
Level Advanced

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)

Concrete characteristic

Type of concrete
Description

To take into account additional deviation to nominal concrete cover caused by production type
Default Combo box; In-situ / Prefabricated ; default = In-situ

Code

 4.4.1.3(1P, 3)
Level Advanced

Figure

 -
Member 1D member (Beam / Column / Beam Slab / Rib)

Beam

Longitudinal

Material
Description

Information about material of longitudinal reinforcement
Default Link to library; default taken from setting in Project data

Code

 -
Level Standard

Figure

 -
Member Beam / Rib
Upper
Diameter of upper reinforcement
Description

Information about diameter of upper of reinforcement
Default Edit box; default ds,u = 16 mm

Code

 -
Level Standard

Figure

 -
Member Beam / Rib
Type of cover of upper reinforcement
Description

Information about type of cover of upper reinforcement
Default Combo box; Auto / User; default = Auto

Code

 4.4.1
Level Standard

Figure

 -
Member Beam / Rib
User defined concrete cover of upper reinforcement
Description

Possibility to define concrete cover of upper reinforcement; this item is visible only if the item above is set to User
Default Edit box; cu = 30 mm

Code

 4.4.1
Level Standard

Figure

 -
Member Beam / Rib
Lower
Diameter of lower reinforcement
Description

Information about diameter of lower of reinforcement
Default Edit box; default ds,l = 16 mm

Code

 -
Level Standard

Figure

 -
Member Beam / Rib
Type of cover of lower reinforcement
Description

Information about type of cover of lower reinforcement
Default Combo box; Auto / User; default = Auto

Code

 4.4.1
Level Standard

Figure

 -
Member Beam / Rib
User defined concrete cover of lower reinforcement
Description

Possibility to define concrete cover of lower reinforcement; this item is visible only if the item above is set to User
Default Edit box; cl = 30 mm

Code

 4.4.1
Level Standard

Figure

 -
Member Beam / Rib
Side
Type of cover of side reinforcement
Description

Information about type of cover of side reinforcement
Default Combo box; Auto / User; default = Auto

Code

 4.4.1
Level Standard

Figure

 -
Member Beam / Rib
User defined concrete cover of side reinforcement
Description

Possibility to define concrete cover of side reinforcement; this item is visible only if the item above is set to User
Default Edit box; cs = 30 mm

Code

 4.4.1
Level Standard

Figure

 -
Member Beam / Rib

Stirrups

Material
Description

Information about material of stirrups reinforcement
Default Link to library; default taken from setting in Project data

Code

 -
Level Standard

Figure

 -
Member Beam / Rib
Diameter of stirrups
Description

Information about diameter of stirrups
Default Edit box; dss = 8 mm

Code

 -
Level Standard

Figure

 -
Member Beam / Rib
Number of cuts
Description

Information about number of cuts for shear reinforcement
Default Edit box; ns = 2

Code

 -
Level Standard

Figure

 -
Member Beam / Rib
Angle
Description

Angle between shear reinforcement and the beam axis perpendicular to the shear force
Default Edit box; α = 90 °

Code

 -
Level Standard

Figure

 -
Member Beam / Rib

Beam slab

Longitudinal

Material
Description

Information about material of longitudinal reinforcement
Default Link to library; default taken from setting in Project data

Code

 -
Level Standard

Figure

 -
Member Beam slab
Upper
Diameter of upper reinforcement
Description

Information about diameter of upper of reinforcement
Default Edit box; default ds,u = 16 mm

Code

 -
Level Standard

Figure

 -
Member Beam slab
Type of cover of upper reinforcement
Description

Information about type of cover of upper reinforcement
Default Combo box; Auto / User; default = Auto

Code

 4.4.1
Level Standard

Figure

 -
Member Beam slab
User defined concrete cover of upper reinforcement
Description

Possibility to define concrete cover of upper reinforcement; this item is visible only if the item above is set to User
Default Edit box; cu = 30 mm

Code

 4.4.1
Level Standard

Figure

 -
Member Beam slab
Lower
Diameter of lower reinforcement
Description

Information about diameter of lower of reinforcement
Default Edit box; default ds,l = 16 mm

Code

 -
Level Standard

Figure

 -
Member Beam slab
Type of cover of lower reinforcement
Description

Information about type of cover of lower reinforcement
Default Combo box; Auto / User; default = Auto

Code

 4.4.1
Level Standard

Figure

 -
Member Beam slab
User defined concrete cover of lower reinforcement
Description

Possibility to define concrete cover of lower reinforcement; this item is visible only if the item above is set to User
Default Edit box; cl = 30 mm

Code

 4.4.1
Level Standard

Figure

 -
Member Beam slab

Column

Longitudinal

Material
Description

Information about material of main reinforcement
Default Link to library; default taken from setting in Project data

Code

 -
Level Standard

Figure

 -
Member Column
Main
Diameter of main reinforcement
Description

Information about diameter of main of reinforcement
Default Edit box; default ds,m = 16 mm

Code

 -
Level Standard

Figure


Member Column
Type of cover of main reinforcement
Description

Information about type of cover of main reinforcement
Default Combo box; Auto / User; default = Auto

Code

 4.4.1
Level Standard

Figure

 -
Member Column
User defined concrete cover of main reinforcement
Description

Possibility to define concrete cover of main reinforcement; this item is visible only if the item above is set to User
Default Edit box; cm = 30 mm

Code

 4.4.1
Level Standard

Figure

 -
Member Column

Stirrups

Material
Description

Information about material of stirrups reinforcement
Default Link to library; default taken from setting in Project data

Code

 -
Level Standard

Figure

 -
Member Beam / Column
Diameter of stirrups
Description

Information about diameter of stirrups
Default Edit box; dss = 8 mm

Code

 -
Level Standard

Figure

 -
Member Beam / Column
Number of cuts
Description

Information about number of cuts for shear reinforcement
Default Edit box; ns = 2

Code

 -
Level Standard

Figure

 -
Member Beam / Column / Rib
Angle
Description

Angle between shear reinforcement and the beam axis perpendicular to the shear force
Default Edit box; α = 90 °

Code

 -
Level Standard

Figure

 -
Member Beam / Column / Rib

Basic (user defined) stirrup

This group of items is related to user defined shear reinforcement which is considered as real inputted reinforcement on member. This replaces user defined shear reinforcement which is not taken into account for design. Check shear and torsion is not influenced by this settings.

Material
Description

Information about material of inputted stirrups reinforcement
Default Link to library; default taken from setting in Project data

Code

 -
Level Advanced

Figure

 -
Member Beam / Column / Rib
Angle
Description

Angle between shear reinforcement and the beam axis perpendicular to the shear force
Default Edit box; α = 90 °

Code

 -
Level Advanced

Figure

 -
Member Beam / Column / Rib
Area of shear reinforcement per meter
Description

Information about defined shear reinforcement taken into account as real reinforcement for shear design
Default 0 mm2

Code

 -
Level Advanced

Figure

 -
Member Beam / Column / Rib
