User defined Attributes

User defined attributes must first be defined and then they can be inserted to the project. The definition dialogue comes out of My Add Data dialogue. The user defines the String database, parameters, picture and icon. The pre-defined attributes appear in the new service menu – Attributes. The attribute can be inserted to the project from here .

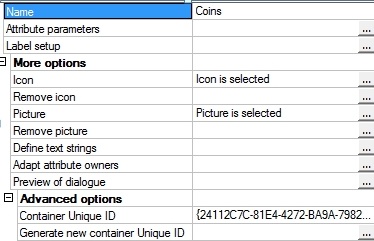

The attribute definition:

When at least one attribute is defined a new service in main tree appears:

In this service also the Attributes Definition dialogue is available.

The name of the service for a new attribute is set in the dialogue as Service name (example – Input of Attribute …) and to this name from string database is connected the name of the attribute in row Name in the Attribute definition (example – coins, face…).

It is much quicker to use an Attribute wizard for the definition.

Name

The user sets a name of the attribute

Attribute parameters

Here the user specifies parameters for Attribute

Label setup

The user can define which values from parameters will be displayed in the label of the attribute

Icon

The user can select an icon which will be used for this attribute in the service menu

Remove icon

Removes the icon


This item inserts a picture which will be displayed in a small window at the bottom of the dialogue

Remove picture

Removes the picture

Define text strings

All the text strings of the user interface are saved into a string database, this allows for an easy translation of the interface to different languages

Adapt attributes owners

In the list of all available owners, the user can select owners for his attribute. If he selects nothing, then the owner can be every member with geometry.

Preview of dialogue

Preview of the attribute dialogue

Container Unique ID

Tells which container is used for this attribute

Generate new container Unique ID

The user can change the container for this attribute
