3D Wind Generator Data

The 3D wind generator data table is possible to create in Engineering report only for Eurocode. It is not available in case of IBC code.The item for creation of the 3D wind generator data table is in Load group.

The report consists from 3 main parts:Code references, Wind pressure according to EC1 and Wind data.

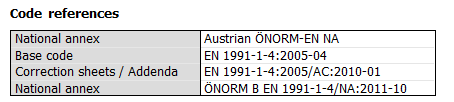

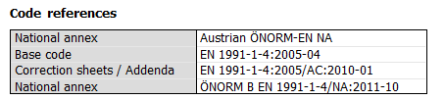

Code references

This subtable defines the particular code correction sheets and national annex which was used.

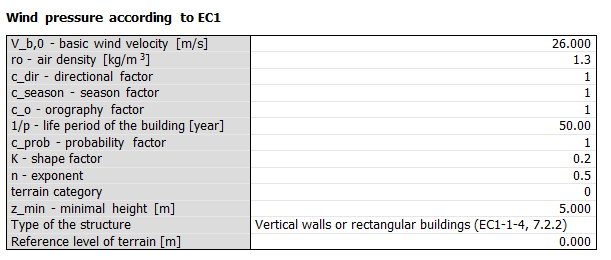

Wind pressure according to EC1

This subtable contains all input data which are defined in Setup manager for the selected national annex related to 3D wind generation.

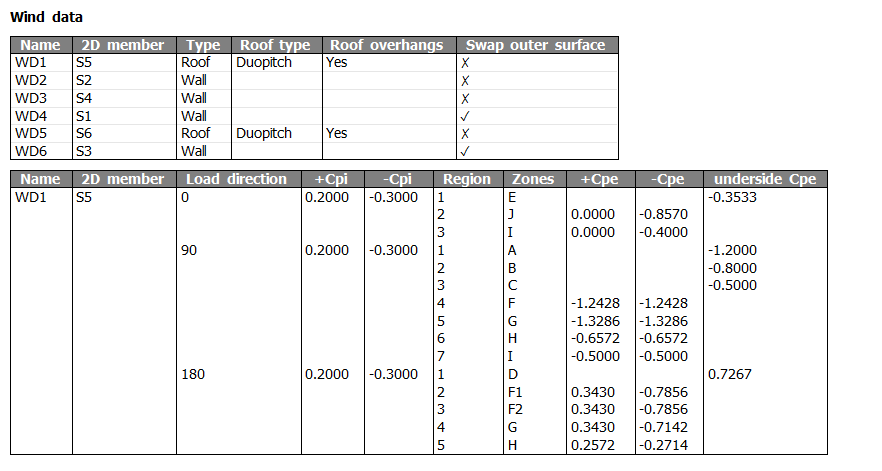

Wind data

This subtable contains both input wind data and generated pressure coefficients. Due to number of columns it is divided into two parts by default. The first part contains inputs related to wind data and the second one contains generated internal and external pressure coefficients for defined wind directions.
