Arranging the parameters into sets

As next step, let’s open the Parameter set manager. Let’s define two parameter sets according to the pictures below.

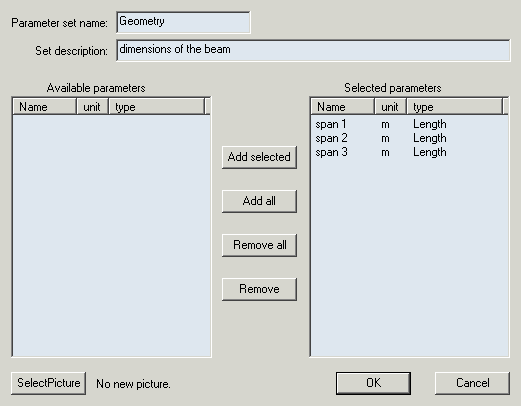

First set:

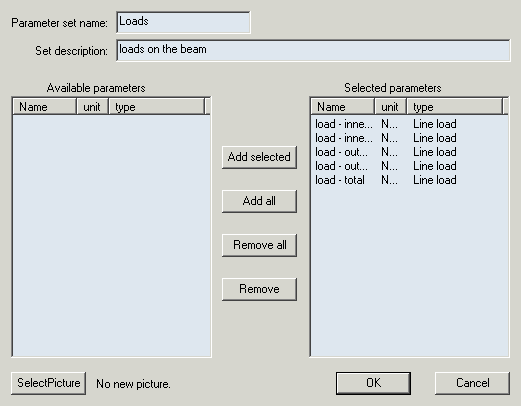

Second set:

Then, let’s prepare a picture to accompany the first set. Let’s close the manager and adjust, let’s say, a standard AXO view in the graphical window. Use function File > Print picture > Export picture to save the drawing into an external BMP file.

Let’s open the Parameter sets manager again and open for editing the Geometry set. Using button [Select picture] let’s browse the saved file.

At this moment we’ve prepared the project to be saved as parameterise template.

Next step: Saving the project as template
