Bolt length

A standard bolt length can be defined in 2 ways:

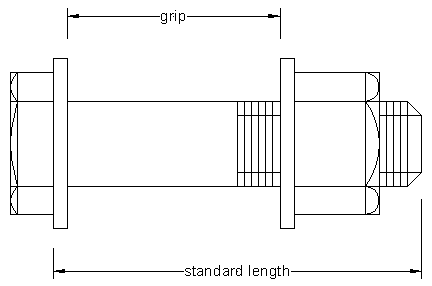

• by the relation standard length - grip length,

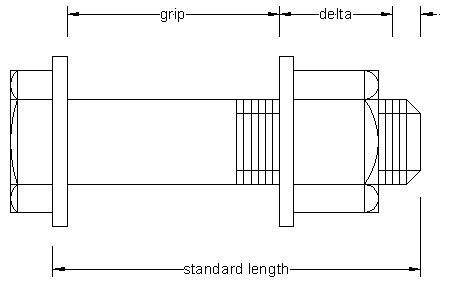

• by adding a specific value "delta" to the grip length : the standard length is given by (grip+delta+nut height+number of washers x washer thickness), rounded to following standard length,
