Adaptation of torsional constant
See Ref.[1], Chapter 10.1.5., Ref.[2],3.5 and Ref.[3],3.3.4..
When steel sheeting is used, the torsional constant It is adapted for symmetric/asymmetric I sections, channel sections, Z sections, cold formed U, C , Z sections.

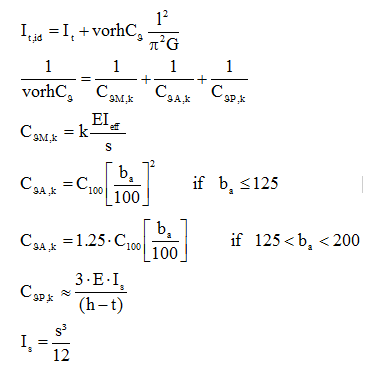

The torsional constant It is adapted with the stiffness of the sheeting:
with
|
l
|
the LTB length
|
|
G
|
the shear modulus
|
|
vorhCq
|
the actual rotational stiffness of sheeting
|
|
CqM,k
|
the rotational stiffness of the sheeting
|
|
CqA,k
|
the rotational stiffness of the connection between the sheeting and the beam
|
|
CqP,k
|
the rotational stiffness due to the distortion of the beam
|
|
k
|
numerical coefficient
= 2 for single or two spans of the sheeting
= 4 for 3 or more spans of the sheeting
|
|
EIeff
|
bending stiffness of per unit width of the sheeting
|
|
s
|
spacing of the beam
|
|
ba
|
the width of the beam flange (in mm)
|
|
C100
|

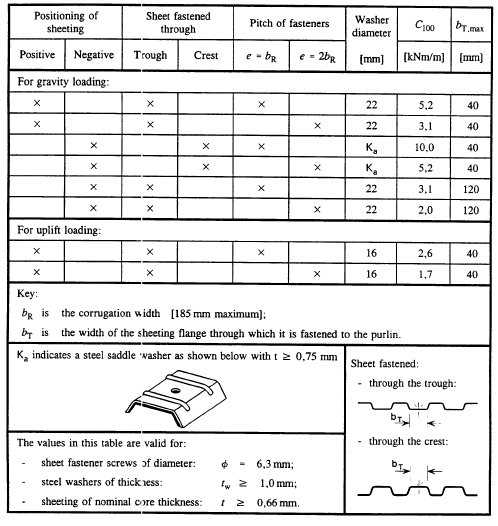

rotation coefficient - see table
|
|
h
|
beam height
|
|
t
|
thickness beam flange
|
|
s
|
thickness beam web
|
