Introduction

Overall check introduces one general check consists of all check together. Dependently on the load case/combination or class type the particular checks are available and can be selected or deselected. The maximum unity check from all calculated checks is then presented as final unity check value. The idea in Overall check is to perform all other 1D checks of prestressed concrete (ULS and SLS) together in one command.

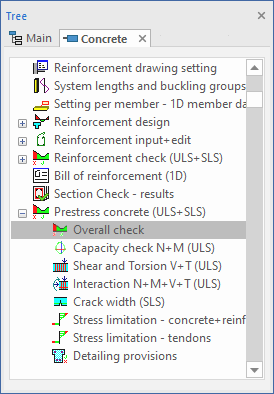

Overall check can be found in Prestress checks > Overall check service.

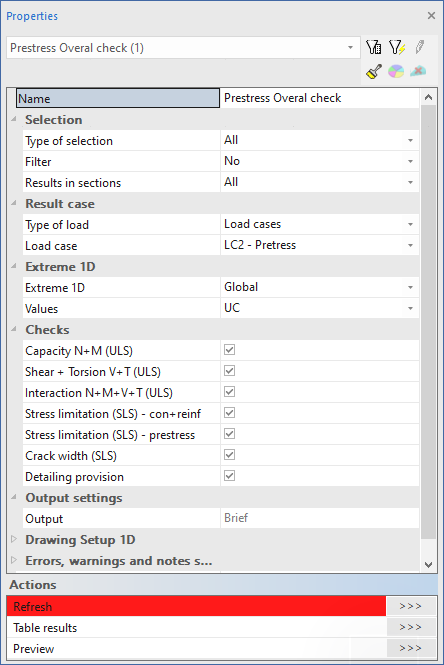

Overall check adopts properties of standard check + Selector of check which will be performed. By default are all check performed.

List of available check varies according selected type of load.

• Load case - all checks
• ULS combination - only ULS checks
• SLS combination - only SLS checks
• Result class - depend on the content of class. If class contain both ULS+SLS combinations, than all checks can be selected and program itself choose proper combination for the checks according its type (ULS or SLS)

The results for all checks are stored after calculation. Execution of one particular check with same load settings takes no addition time, because results are already calculated.

Output

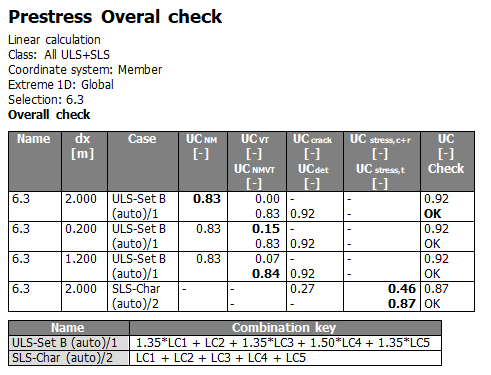

Only brief output is available for overall check. For details about particular checks is needed to execute them independently. Brief table contains Unity checks of all checks. If check is not performed, than "-" is in the cell in table.

where

• UC_NM - unity check corresponding to capacity check
• UC_VT - unity check corresponding to shear and torsion check
• UC_NMVT - unity check corresponding to interaction check (bending moment, normal force, shear and torsion )
• UC_crack - unity check corresponding to crack width check and decompression
• UC_det - unity check corresponding to detailing provision check
• UC_stress,c+r - unity check corresponding to stress limitation check of concrete and reinforcement
• UC_stress,t - unity check corresponding to stress limitation check of tendons
• UC - maximal unity check from all calculated checks
• Check - status of Overall check if it is OK or NOT OK
