Fibre library



There is a new library of Fibres if the check box in Project data > Steel fibre concrete is set ON. This new library is in Libraries > Concrete, reinforcement > Fibres.

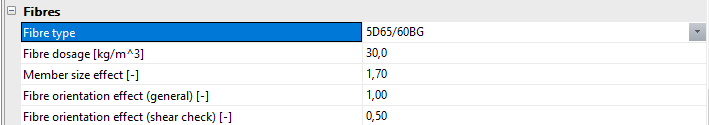

The fibre type is then possibly selected in material of steel fibre concrete directly. The material characteristics are calculated based on the selected fibre type.

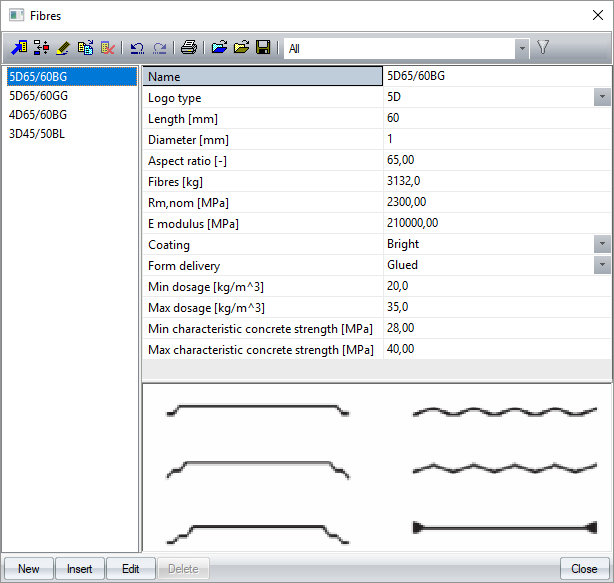

This s a standard library with all general functions. There is predefined list of fibres which are stored in EP_Fibres.db4.

The name of fibres is automatically generated from the following items:

5D65/60BG

where

5D Logo type
65 Aspect ratio
60 Length
B Coating
G Form delivery

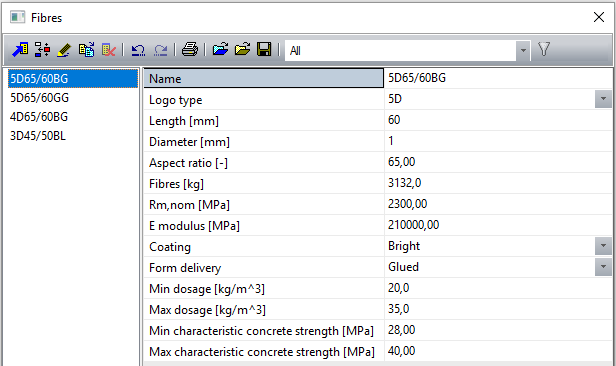

The property of the items in library will be the following:

Name   Edit box 5D65/60BG 5D65/60GG 4D65/60BG 3D45/50BL
Logo type   Combo box 5D 5D 4D 3D
Length [mm] Edit box 60 60 60 50
Diameter [mm] Edit box 0,9 0,9 0,9 0,9
Aspect ratio [-] Edit box 65 65 65 45
Fibres [kg-1] Edit box 3132 3132 3200 3200
Rm,nom [MPa] Edit box 2300 2300 1600 1600
E modulus [MPa] Edit box 210000 210000 210000 210000
Coating   Combo box Bright Galvanized Bright Bright
Form delivery   Combo box Glued Glued Glued Loose
Min dosage [kg/m3] Edit box 20 20 20 20
Max dosage [kg/m3] Edit box 35 35 40 40
Min characteristic concrete strength [MPa] Edit box 28 28 20 20
Max characteristic concrete strength [MPa] Edit box 40 40 40 40
