Using the clipping box

The procedure to switch the clipping box ON or OFF

  1. On toolbar View click button [Clipping box for active view] (image\Icon_Clipping_Box.gif) and select function Clipping box On/Off.

  2. The clipping box is activated or switched off accordingly.

Example of clipping box application

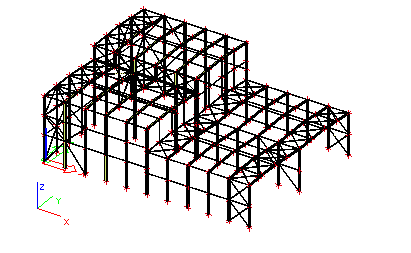

view without clipping box

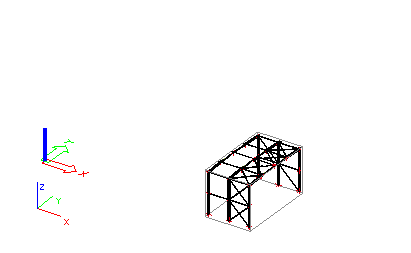

view with clipping box ON

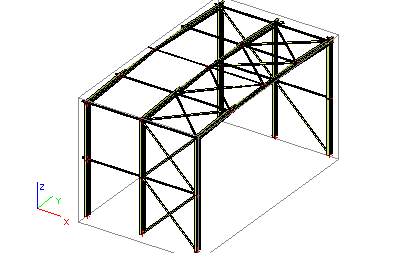

view with clipping box ON after being zoomed in
