Generated Combination (Classes) after Construction stages run

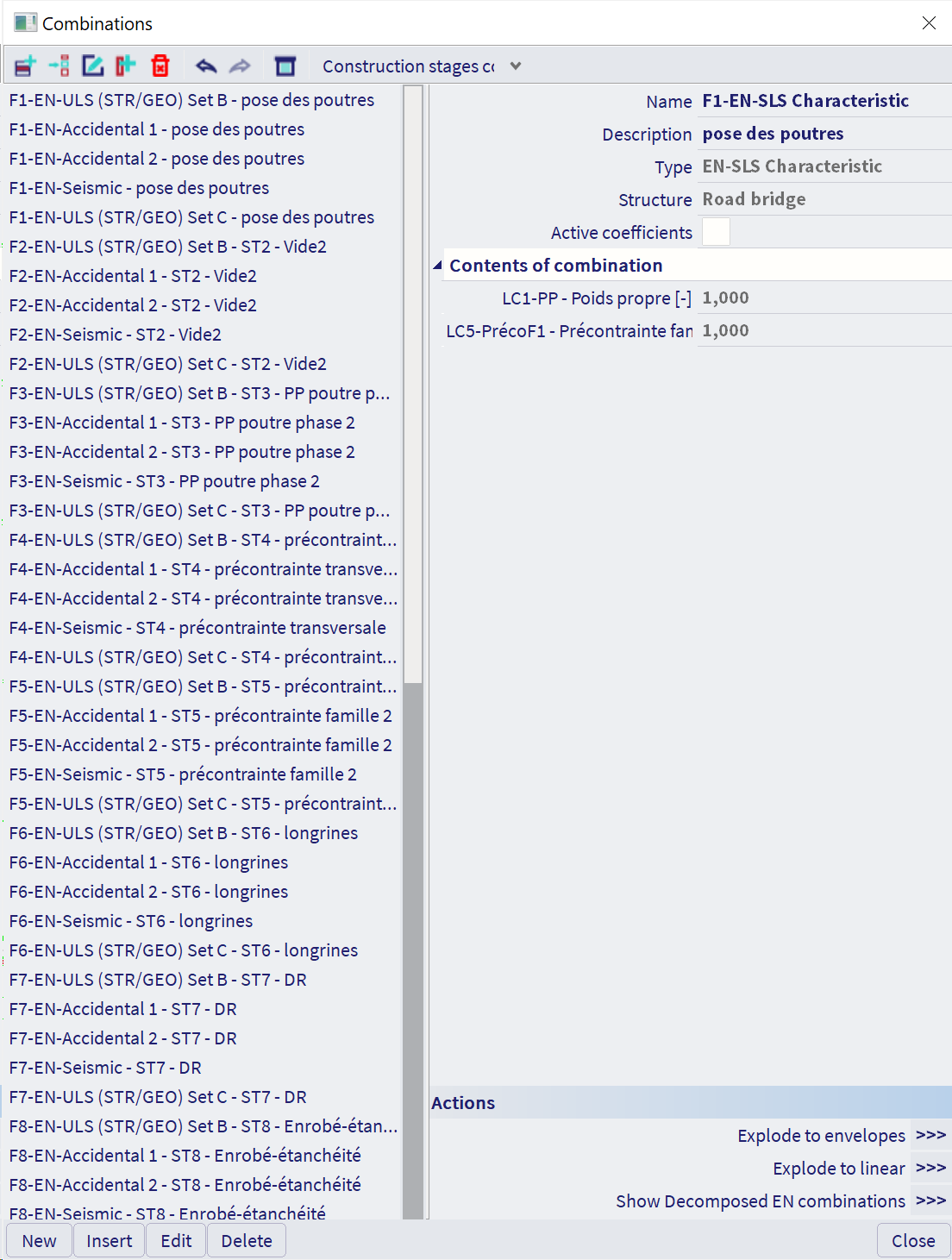

When the construction stage analysis is successfully performed then special staged Combinations and Classes are generated .

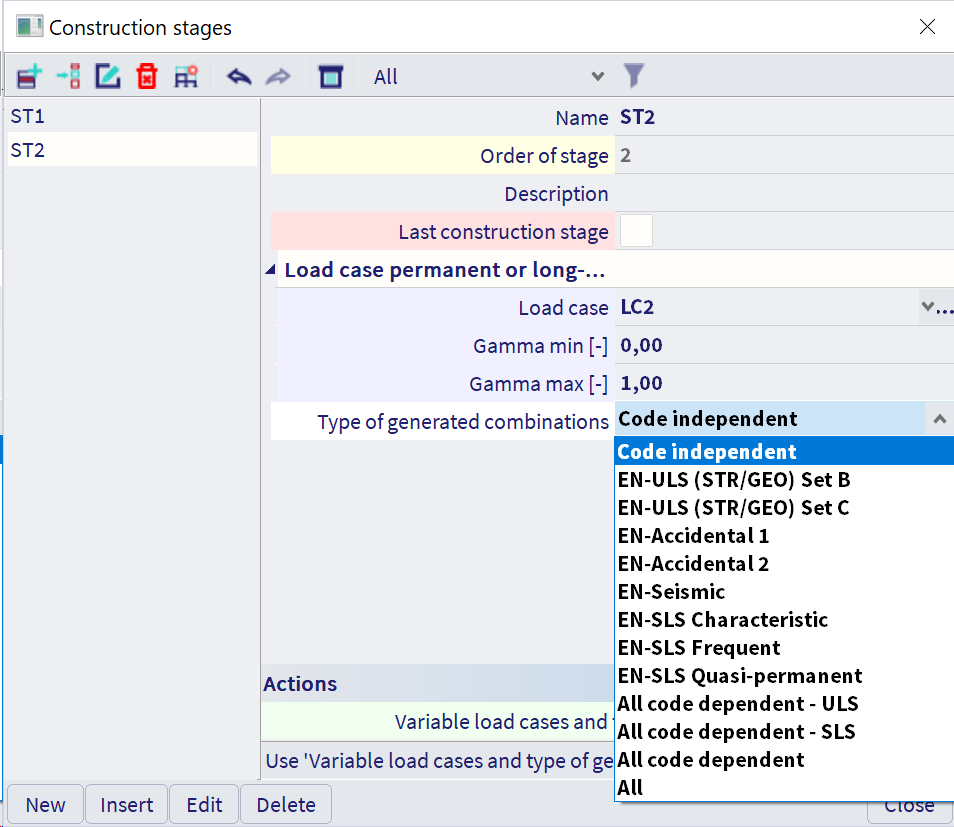

The type of Combination and Classes are dependent on the selection for each construction stage in manager of Construction stages.

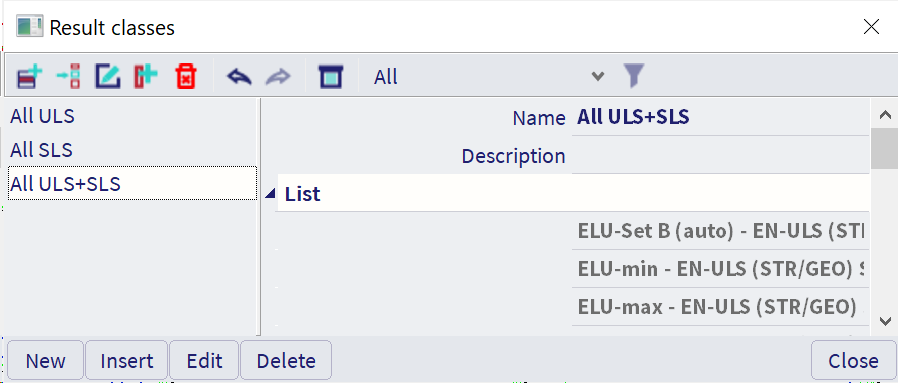

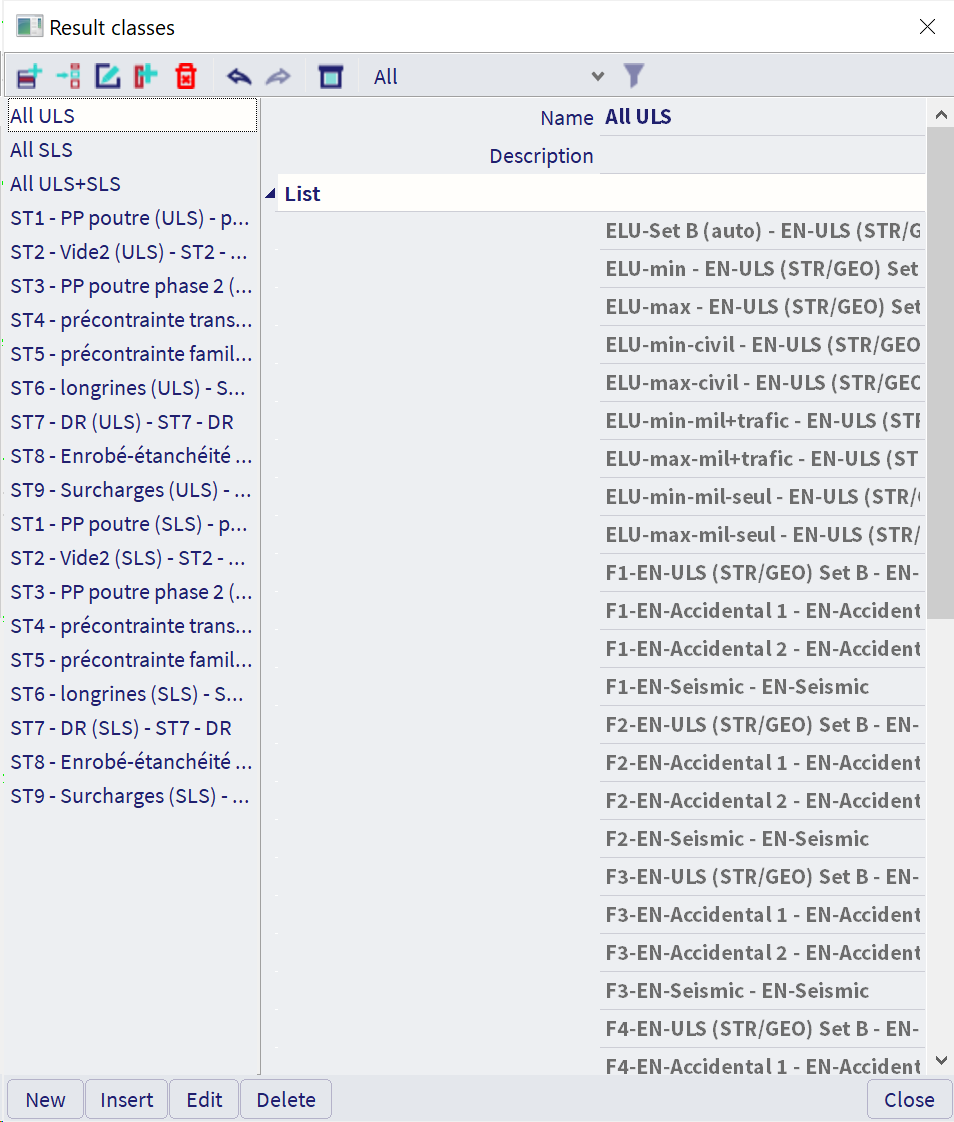

There are generated individual Classes per stage, but additionally classes
- All ULS
- All SLS
- Al (ULS+SLS)
are generated which include always envelope of all ULS/SLS combinations type or completely all combinations. in case option All is selected in the figure above.
