Shear check - Results

List of Results

The following list of result values is available to be presented in the graphical output:

UC	Value of unity check
vfRd,cf	shear capacity of slab with respect of fibres
vRd,c	shear capacity of concrete without fibres
vRd,cf	shear capacity corresponding to fibres
vRd,max	maximal capacity of compressive concrete strut

Graphical Output

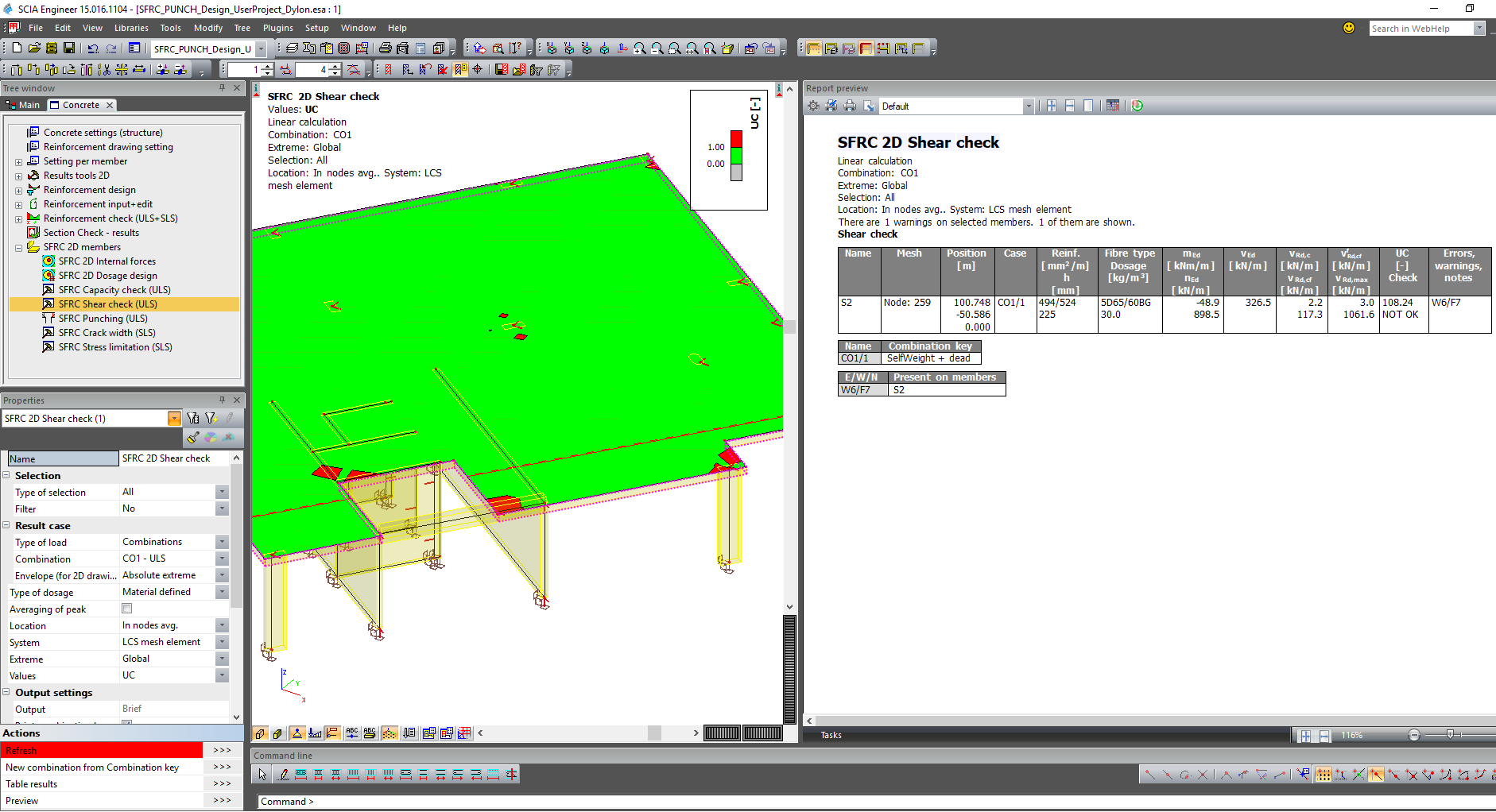

Unity check (UC) is drawn in two colours scale.

Green - UC is between 0,001 and UC_lim → shear check is OK

Red - UC is greater than UC_lim →shear check is NOT OK

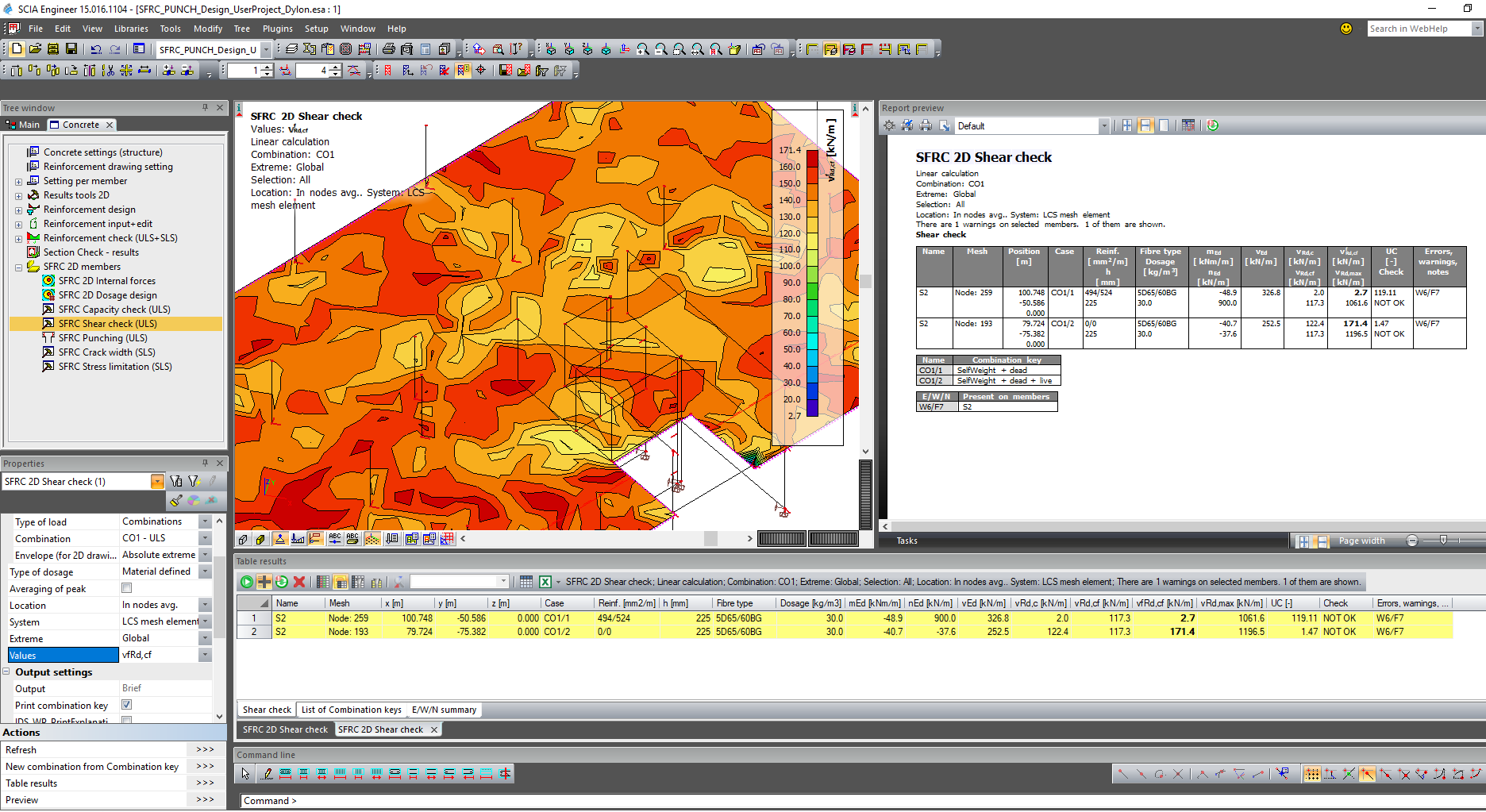

The results are presented as follows

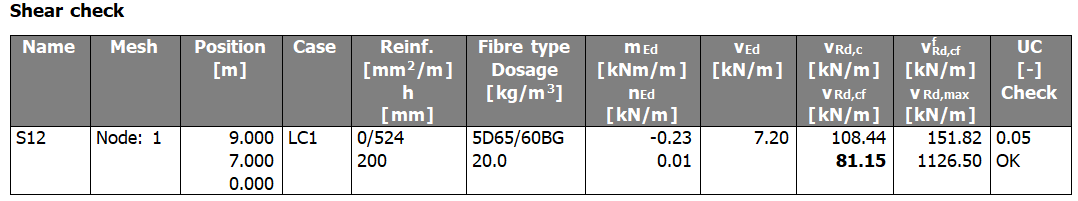

Numerical output

Presentation of results as a numerical output is possible via Preview and / or Table results

The explanation of values is the following

Reinf	User defined standard reinforcement expressed as "upper reinforcement / lower reinforcement"
h	Thickness of the slab
Fibre type	Type of fibres which is used for calculation of capacity check
Dosage	Used amount of fibres
mEd	Dimensional bending moment corresponding to direction of shear force resultant
nEd	Dimensional normal force corresponding to to direction of shear force resultant
vEd	Shear force resultant
vRd,c	Shear capacity of concrete without fibres
vRd,cf	Shear capacity corresponding to fibres
vfRd,cf	Shear capacity of slab with respect of fibres
vRd,max	Maximal capacity of compressive concrete strut
UC	Calculated UC
Check	Status of check
