Defining a new clipping box

The definition of a new clipping box is similar to the adjusting of the clipping box in the setting table.

The procedure for the definition of a new clipping box

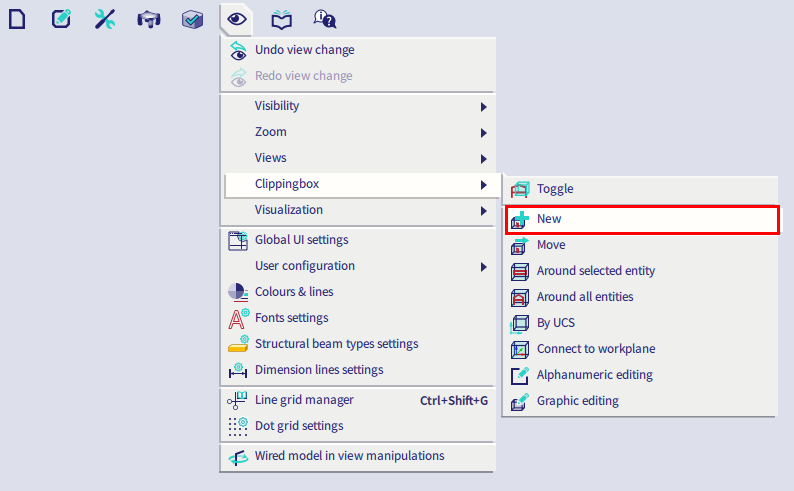

1. Call function via Main menu > View > Clippingbox > New or by searching the SCIA Spotlight.


2. Define the origin (i.e. the centre) of the clipping box.

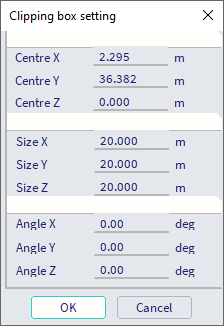

3. The setup dialogue appears on the screen.


4. Fill in the table.

5. Confirm with button [OK].
