7th DoF (warping) - nodal reaction

Nodal reaction - new result

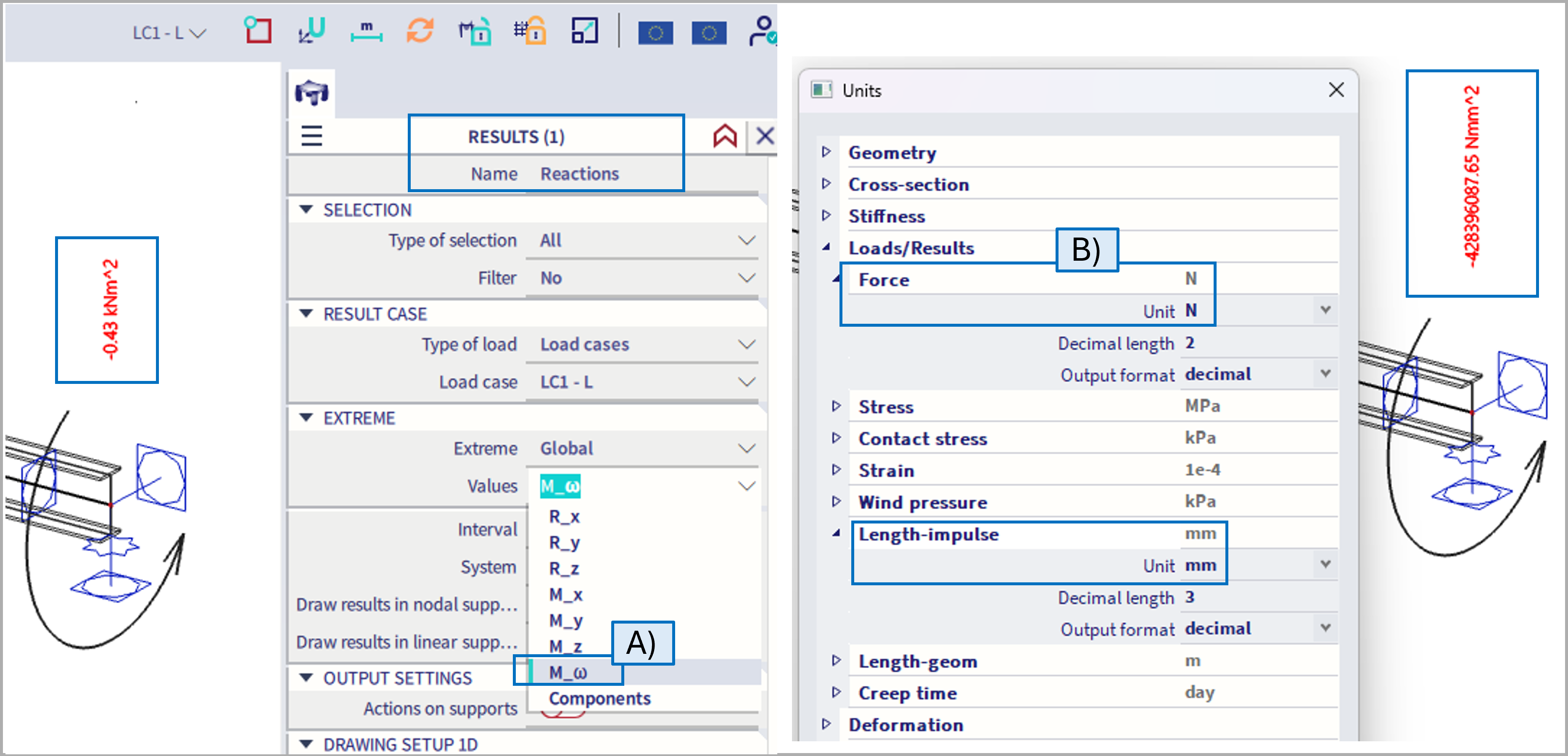

As a consequence of a possible warping constraint in a nodal support (see "7th DoF (warping) - nodal supports"), there is also new reaction for warping bimoment M_w [kN m^2] - see figure below, A).

The unit for this bimoment might be modified by altering the unit for "Force" and "Length-impulse" within the "Loads/Results" if the "Unit" settings dialogue - see figure below, B).
