Global setting

The following items have impact on the calculation of deflection check

• Parameters of creep coefficient, see "Parameters for calculation of creep coefficient"
• Type of strength for calculation of cracking forces, see "Type of strength for calculation of cracking forces"
• Value of strength for calculation of cracking forces, see "Value of strength for calculation of cracking forces"
• Coefficient for increasing amount of reinforcement, see "Coefficient for increasing amount of reinforcement"
• Maximal total deflection for 1D member, see "Maximal total deflection for 1D member"
• Maximal additional deflection for 1D member, see "Maximal additional deflection for 1D member"
• Maximal total deflection for 2D member, see "Maximal total deflection for 2D member"
• Maximal additional deflection for 2D member,see "Maximal additional deflection for 2D member"
• Type of variable load coefficient for the automatic generation of a combination for calculation creep deflection, see "Type of variable load coefficient for the automatic generation of a combination"

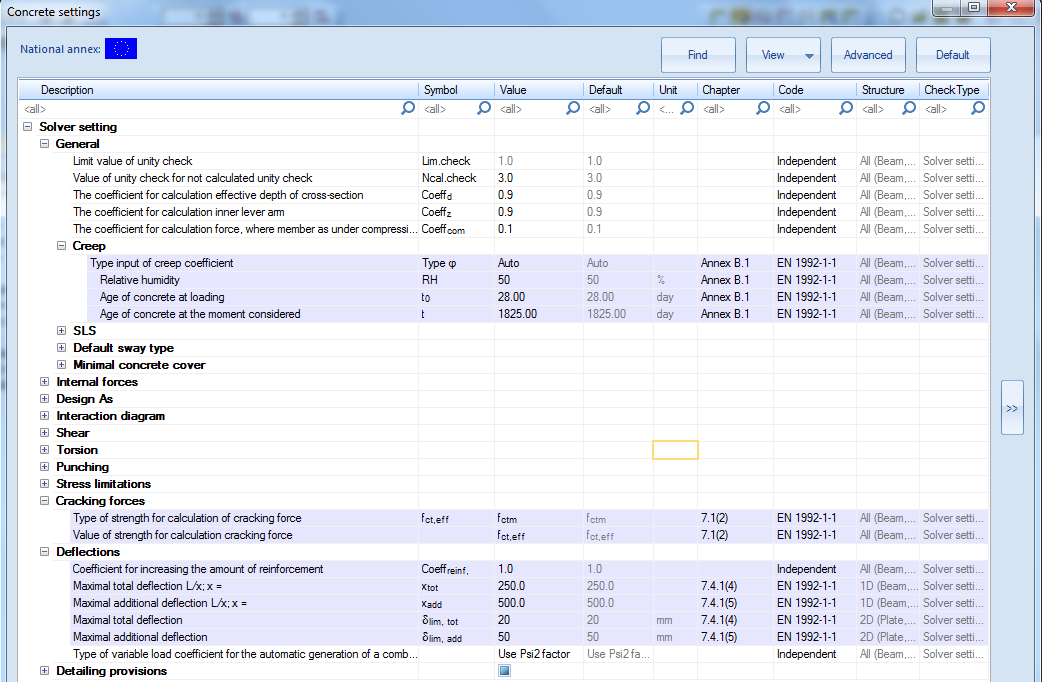

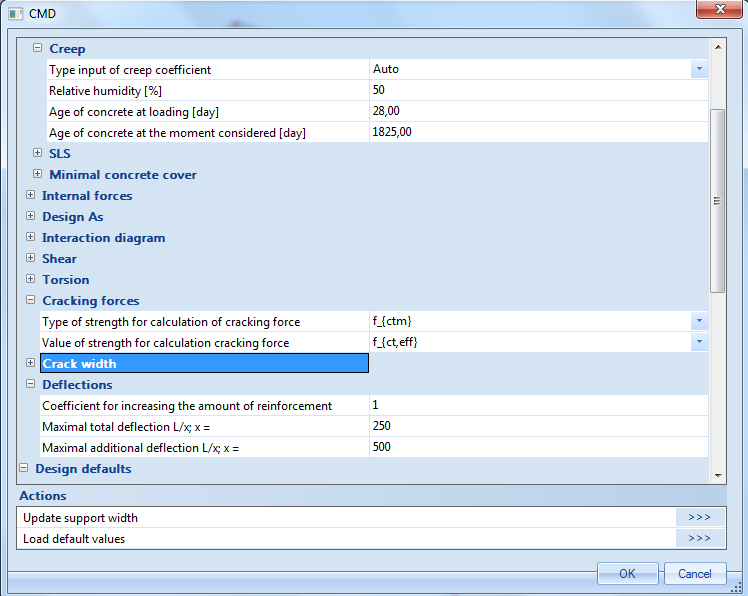

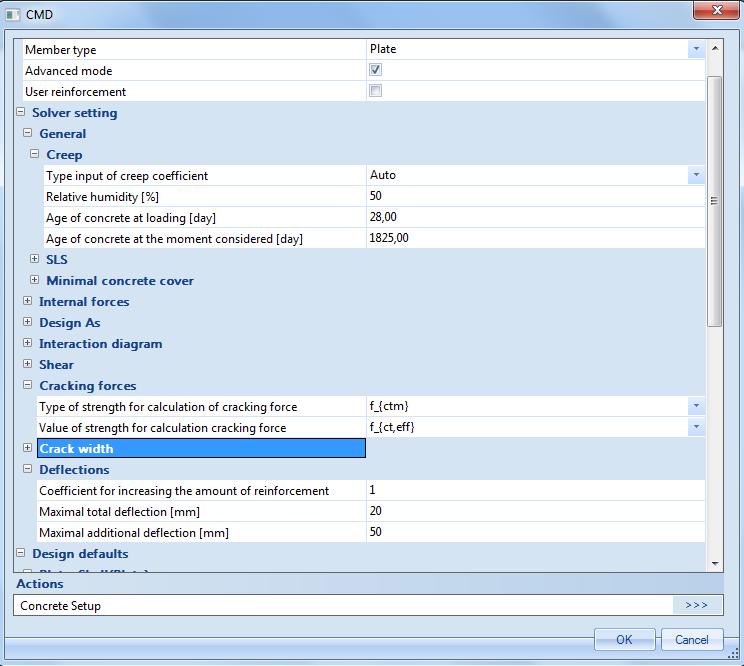

Setting of parameters can be done in Concrete setting (setting for whole structure) or individual per member (local setting) in 1D or 2D concrete data, if it is defined
