Composite Beam Data

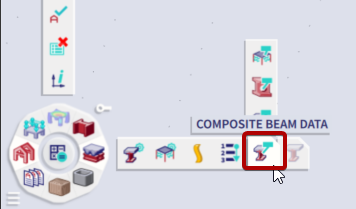

Specific settings can be applied to individual composite members in a model using Composite Beam Data. These settings overwrite any settings which are also found in the Composite Setup. To add composite beam data, select the members to which the data should be added and select Composite Beam Data from the Composite service.

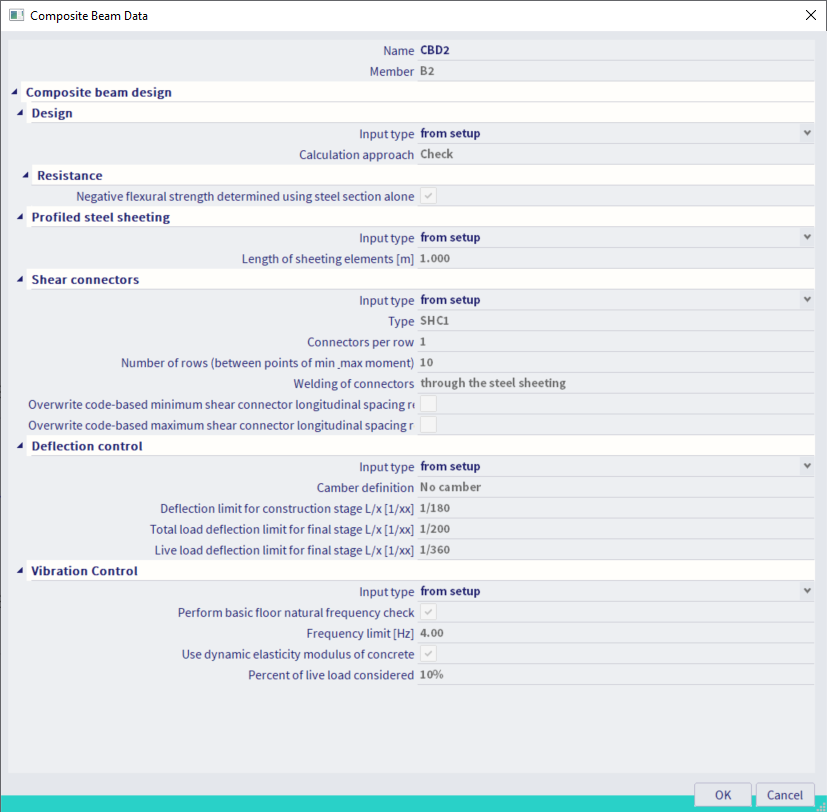

The settings which can be added to the members via Composite Beam Data and overwrite Composite Setup settings for selected member are shown below:
