Concrete in SCIA Engineer

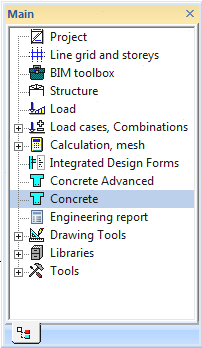

New version of Concrete module is placed in completely different part of the main program tree. This module is situated in Concrete new command in the tree.

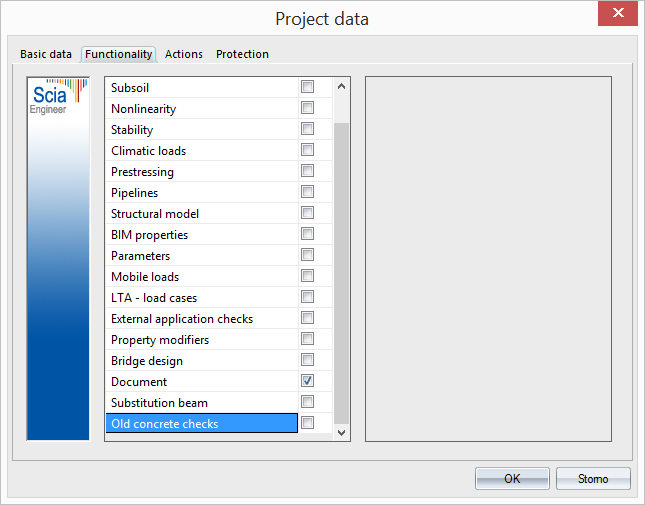

Nevertheless, existing old solution for concrete design and check is still available. The functionality of existing concrete checks is activated in Project data - Functionality - Old concrete checks (see the following figure). Command in the tree is renamed to Concrete Advanced.

Both items in the tree are visible in this case.

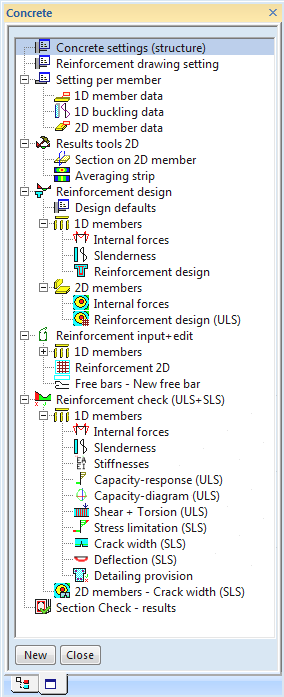

When we go into Concrete tree we can also see completely different arrangement of the tree. The Concrete tree is split into five parts:

• Settings - global and local settings
  • Concrete settings (structure) - see chapter "Concrete settings (structure)"
  • Reinforcement drawing settings
  • Settings per member
    • 1D member data (see Concrete_member_data.htm)
    • 1D buckling data
    • 2D member data
  • Results tools 2D
    • Section on 2D member
    • Averaging strip
• Reinforcement design
  • Design defaults
  • 1D members
    • Internal forces
    • Slenderness
    • Reinforcement design - design of longitudinal and shear reinforcement
  • 2D members
    • Internal forces
    • Reinforcement design (ULS)
• Input of real reinforcement
• Reinforcement checks (ULS+SLS)
  • 1D members
    • Internal forces
    • Slenderness
    • Stiffnesses
    • Capacity - response (ULS)
    • Capacity - diagram (ULS)
    • Shear + Torsion (ULS)
    • Stress limitation (SLS)
    • Crack width (SLS)
    • Deflection (SLS)
    • Detailing provisions
  • 2D members - Crack width (SLS)
• Section Check - results
